Parking Brake Cable RH — 2016 workshop reference 2889

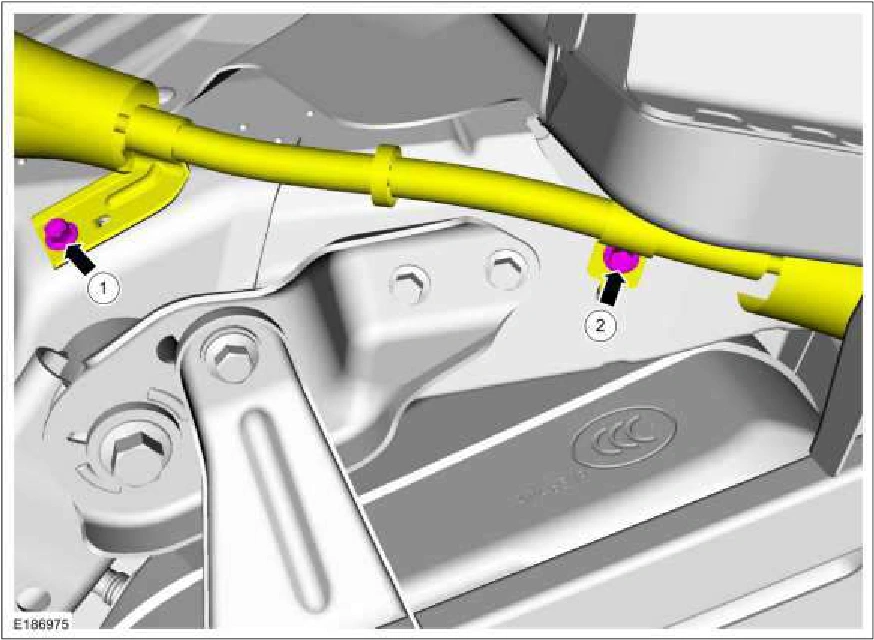

1. Torque : 20 lb.ft (27.5 Nm)

2. Torque : 18 lb.ft (25 Nm)

Parking Brake Cable RH — original illustration 1, reference 2889Original colors & callouts · Select to enlarge

6. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

Step 7

1. Remove the parking brake cable bracket bolt. Torque : 20 lb.ft (27.5 Nm)

2. Disconnect the parking brake cable from the brake caliper lever.

3. Push inwards on the 2 tabs, detach the parking brake cable from the brake caliper bracket and remove the parking brake cable.
