206-05 Parking Brake and Actuation 2016 Mustang

Removal and Installation Procedure revision date: 08/21/2015

Parking Brake Cable RH - Vehicles With: SVT Performance Package

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the muffler and tailpipe assembly. Refer to: Muffler and Tailpipe (309-00D Exhaust System - 5.2L 32V Ti-VCT, Removal and Installation).

Step 2

1. Loosen the parking brake cable adjustment nut.

2. Push inward on the 2 tabs and detach the RH cable from the bracket.

3. Rotate the cable, slide the pin downwards and detach the cable from the equalizer.

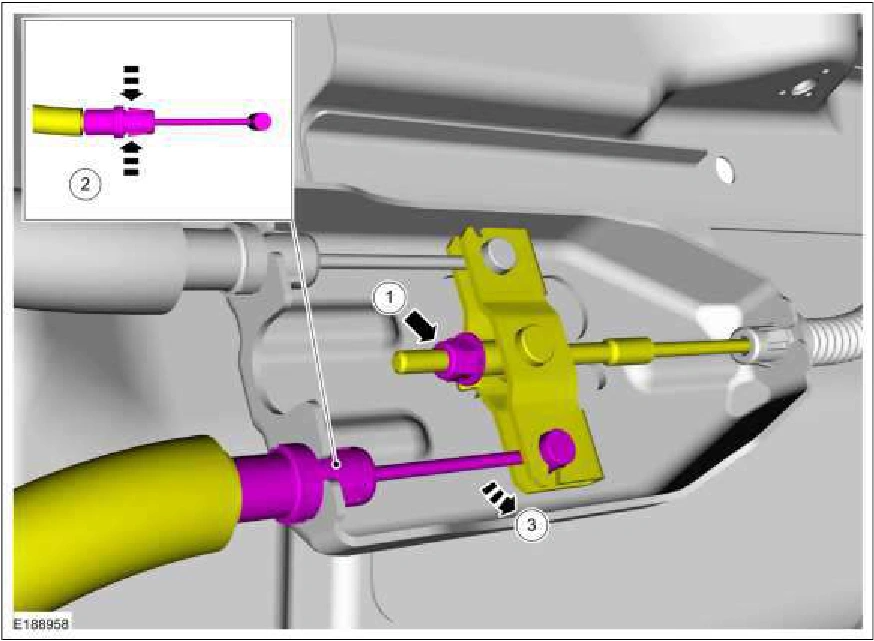

Parking Brake Cable RH - Vehicles With: SVT Performance Package — original illustration 1, reference 2891Original colors & callouts · Select to enlarge

3. Remove the parking brake cable bracket bolt. Torque : 18 lb.ft (25 Nm)

Source reference 2891
