Parking Brake Cable RH - Vehicles With: SVT Performance Package — 2016 workshop reference 2893

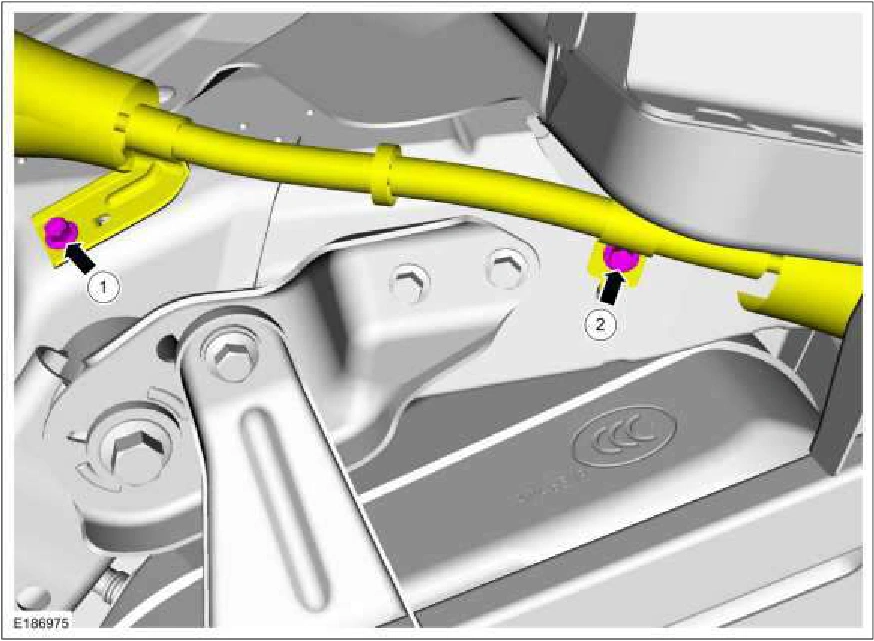

1.: 20 lb.ft (27.5 Nm)

2.: 18 lb.ft (25 Nm)

Parking Brake Cable RH - Vehicles With: SVT Performance Package — original illustration 1, reference 2893Original colors & callouts · Select to enlarge

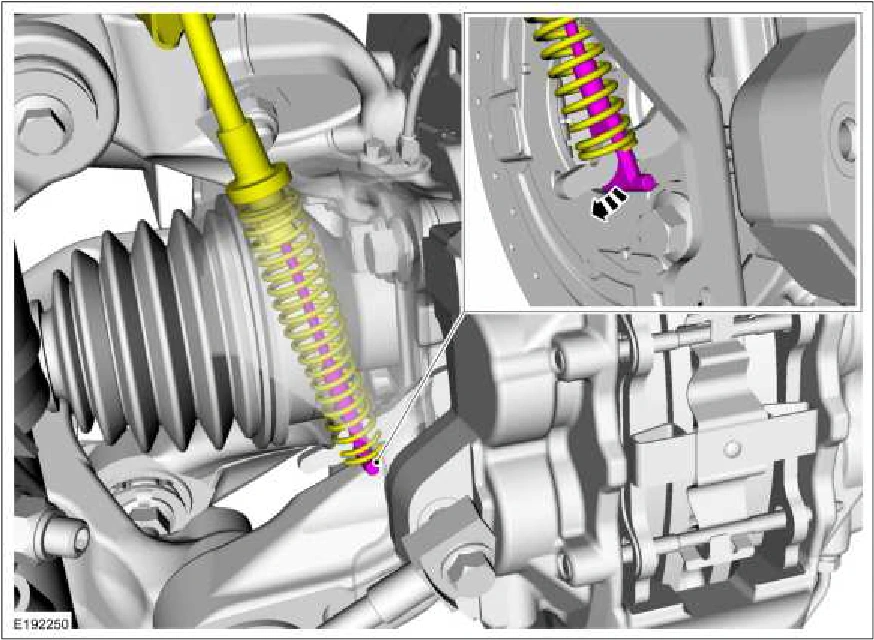

6. Disconnect the parking brake cable from the actuation lever.

Parking Brake Cable RH - Vehicles With: SVT Performance Package — original illustration 2, reference 2893Original colors & callouts · Select to enlarge

Step 7

1. Detach the wheel speed sensor harness retainer and position the harness aside.

2. Push inward on the tabs and detach the cable from the bracket.

3. Remove the parking brake cable bracket bolt and remove the RH parking brake cable.
