Parking Brake Shoes - Vehicles With: SVT Performance Package — 2016 workshop reference 2895

206-05 Parking Brake and Actuation 2016 Mustang

Removal and Installation Procedure revision date: 08/11/2015

Parking Brake Shoes - Vehicles With: SVT Performance Package

Materials

Name	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake disc. Refer to: Brake Disc (206-04 Rear Disc Brake, Removal and Installation).

2. Remove the return springs and the adjuster.

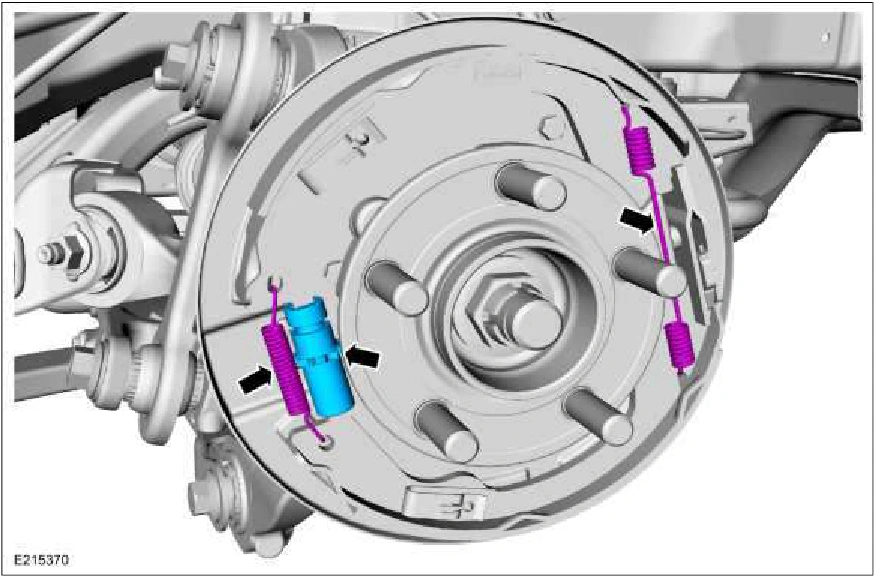

Parking Brake Shoes - Vehicles With: SVT Performance Package — original illustration 1, reference 2895Original colors & callouts · Select to enlarge

3. Remove the hold down springs, pins and the parking brake shoes.

Source reference 2895
