Parking Brake Shoes - Vehicles With: SVT Performance Package — 2016 workshop reference 2896

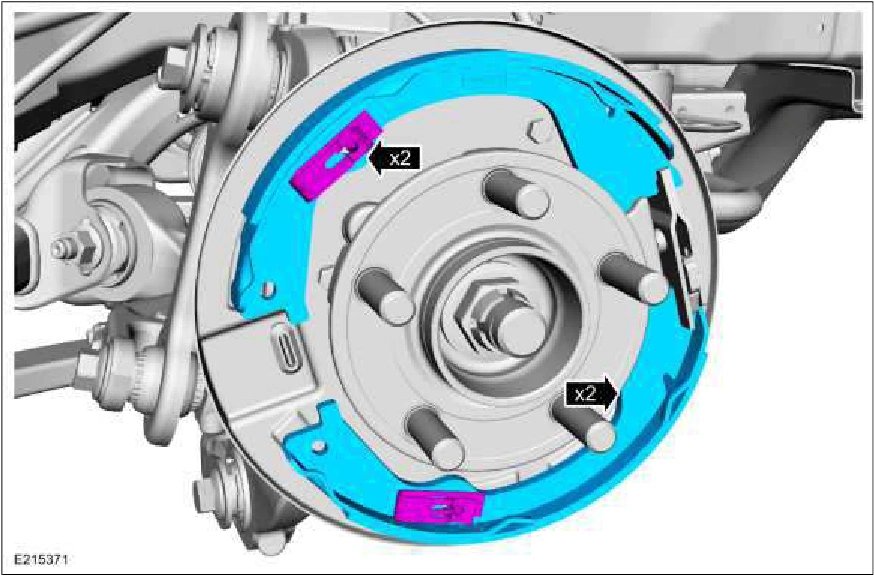

Parking Brake Shoes - Vehicles With: SVT Performance Package — original illustration 1, reference 2896Original colors & callouts · Select to enlarge

Installation

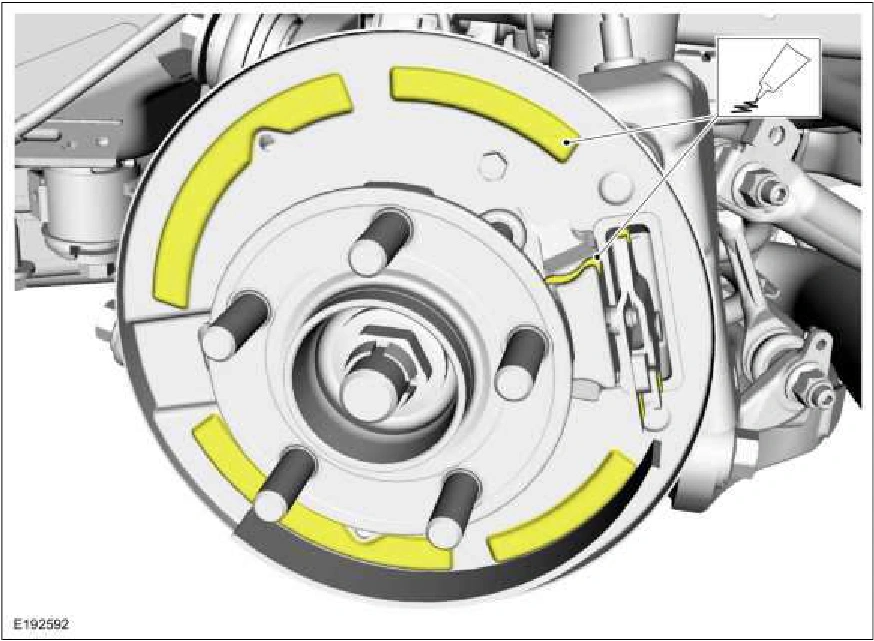

1. Using specified grease, lubricate the parking brake shoe contact points. Material : Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

Parking Brake Shoes - Vehicles With: SVT Performance Package — original illustration 2, reference 2896Original colors & callouts · Select to enlarge

2. Adjust the parking brake shoes. Refer to: Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package (206-05 Parking Brake and Actuation, General Procedures).
