206-06 Hydraulic Brake Actuation 2016 Mustang

Removal and Installation Procedure revision date: 08/25/2015

Brake Pedal and Bracket - 6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82

Base Part Number: 2455

Removal

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

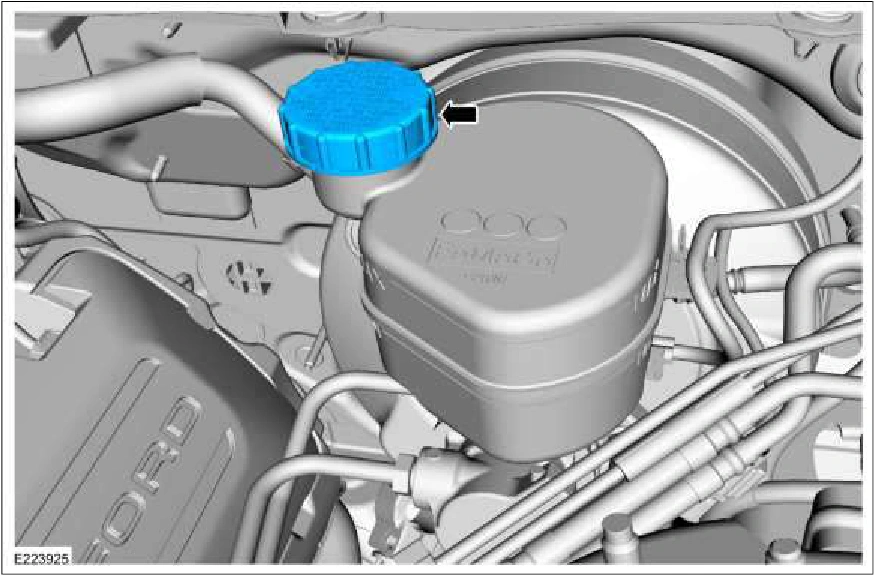

1. Remove the brake fluid reservoir cap.

Brake Pedal and Bracket - 6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82 — original illustration 1, reference 2903Original colors & callouts · Select to enlarge

2. Using a suitable suction device, syphon the brake fluid from the brake fluid reservoir.
