Brake Master Cylinder — 2016 workshop reference 2900

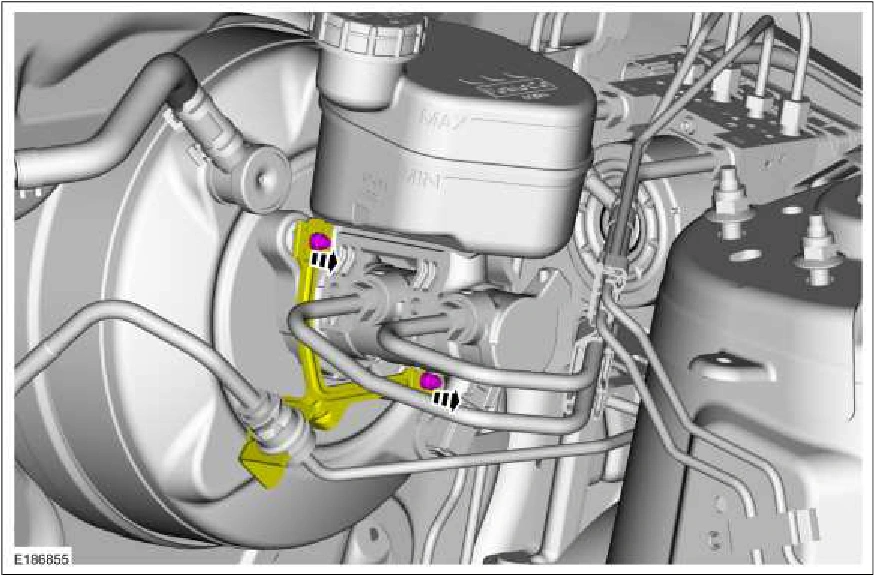

Brake Master Cylinder — original illustration 1, reference 2900Original colors & callouts · Select to enlarge

All vehicles

Step 5

1. Disconnect the brake fluid level sensor electrical connector.

2. Detach the wiring harness retainer from the brake fluid reservoir.

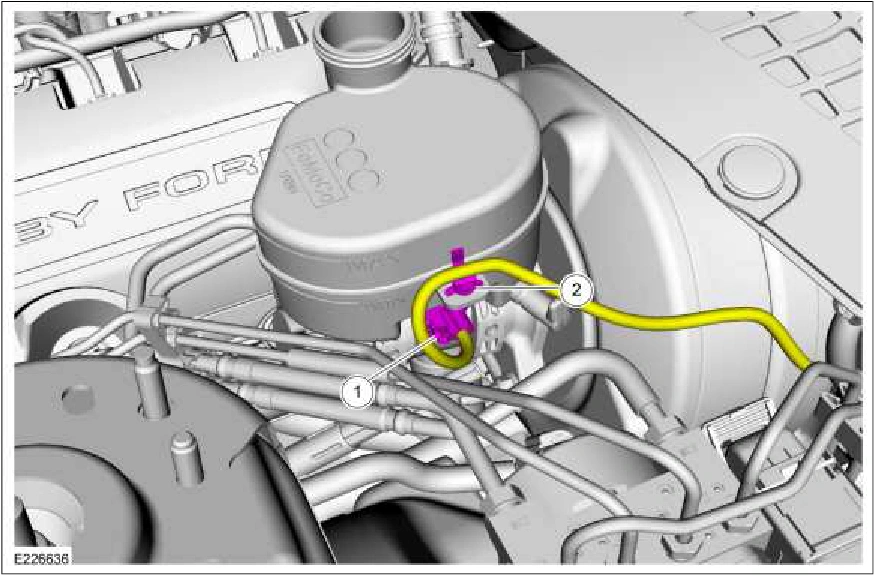

Brake Master Cylinder — original illustration 2, reference 2900Original colors & callouts · Select to enlarge

6. NOTICE: Make sure that all openings are sealed.

Disconnect the 2 brake tube fittings. Torque : 20 lb.ft (27.5 Nm)
