Brake Pedal and Bracket - 6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82 — 2016 workshop reference 2907

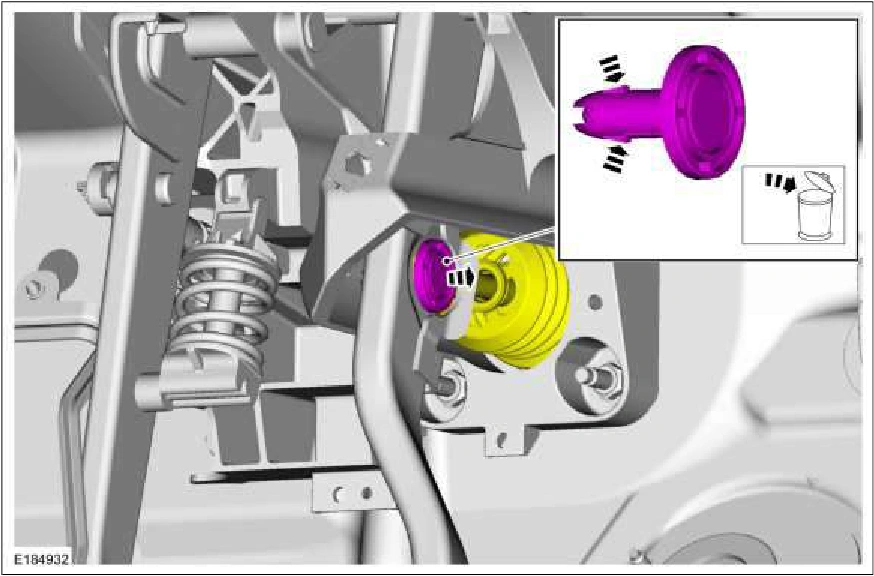

9. NOTE: The booster push rod clevis-locking pin is a one-time use only part. Any time the booster push rod clevis-locking pin is removed, a new booster push rod clevis-locking pin should be used.

Remove and discard the booster push rod clevis-locking pin and position aside the booster push rod.

Brake Pedal and Bracket - 6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82 — original illustration 1, reference 2907Original colors & callouts · Select to enlarge

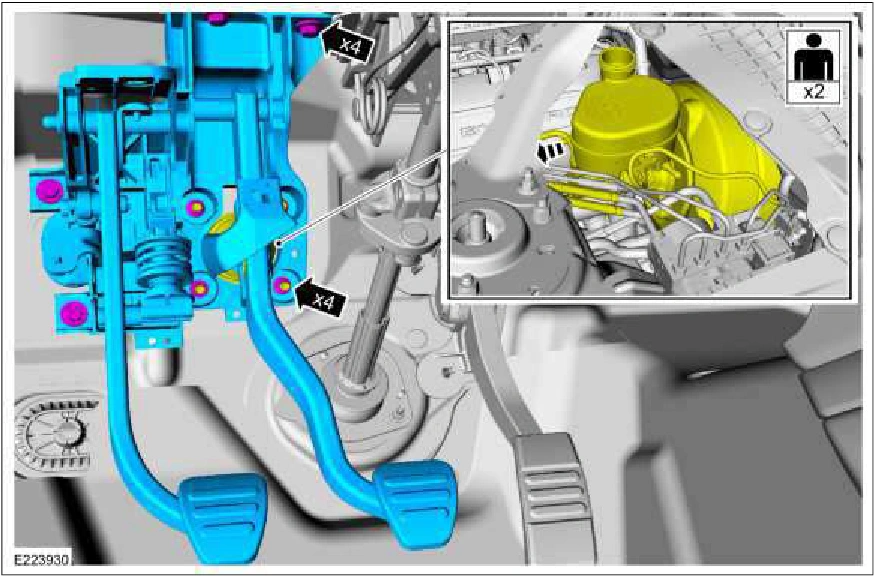

10. NOTICE: Do not pry on the brake booster or damage to the brake booster may occur.

Have an assistant pull the brake booster and master cylinder assembly away from the dash panel. Remove the 4 bolts, 4 nuts and remove the brake pedal/clutch pedal assembly. Torque : 17 lb.ft (23 Nm)

Brake Pedal and Bracket - 6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82 — original illustration 2, reference 2907Original colors & callouts · Select to enlarge

Installation

1. NOTICE: Do not press, pull or otherwise move the brake pedal while installing the stoplamp switch.
