206-07 Power Brake Actuation 2016 Mustang

Removal and Installation Procedure revision date: 01/26/2015

Brake Vacuum Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

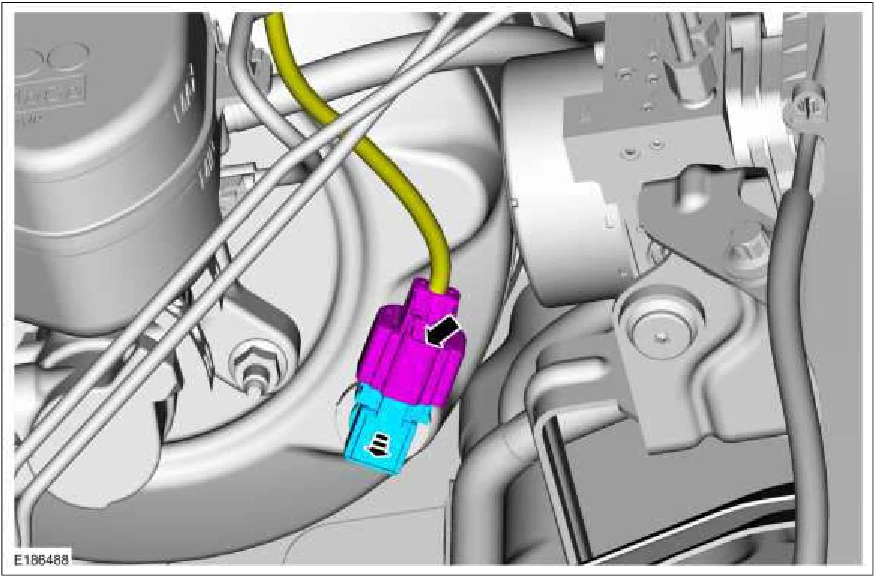

1. Disconnect the brake booster vacuum sensor electrical connector and remove the brake booster vacuum sensor.

Brake Vacuum Sensor — original illustration 1, reference 2923Original colors & callouts · Select to enlarge

Installation

NOTE: Please note the correct installation position. It is critical that the sensor be installed in the exact position that it was removed.

1. To install, reverse the removal procedure.

Copyright © 2016 Ford Motor Company
