2016 workshop · Brake System

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT

206-07 Power Brake Actuation

2016 MustangReference 2,921 / 6,619HTML edition

← Chapter contents Procedure contents

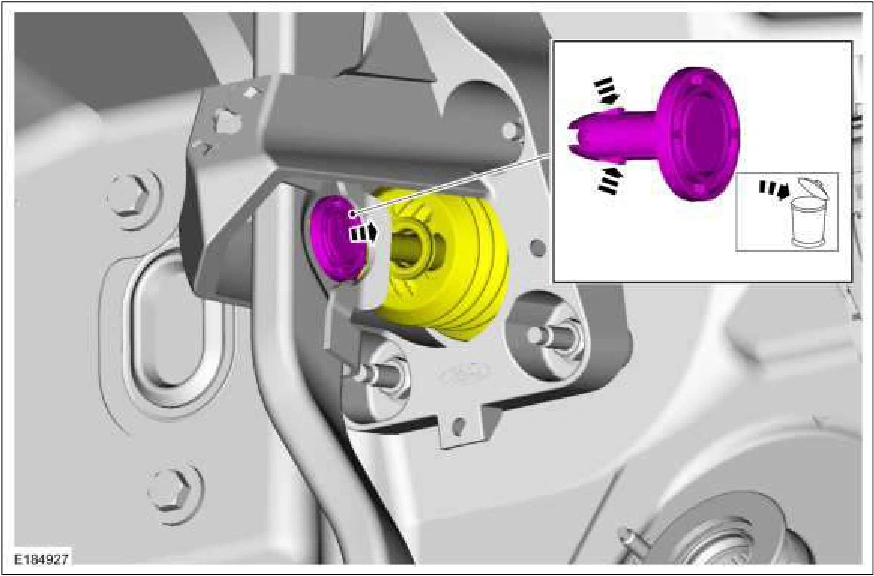

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 1, reference 2921Original colors & callouts · Select to enlarge

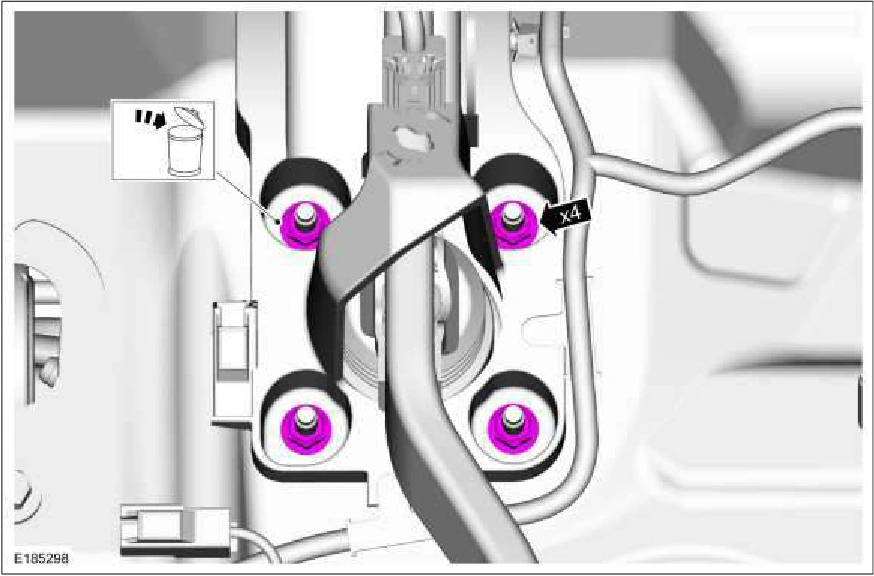

18. Remove and discard the 4 nuts. Torque : 17 lb.ft (22.5 Nm)

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 2, reference 2921Original colors & callouts · Select to enlarge

19. Remove the brake booster.

Source reference 2921

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
