Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT

206-07 Power Brake Actuation

2016 MustangReference 2,919 / 6,619HTML edition

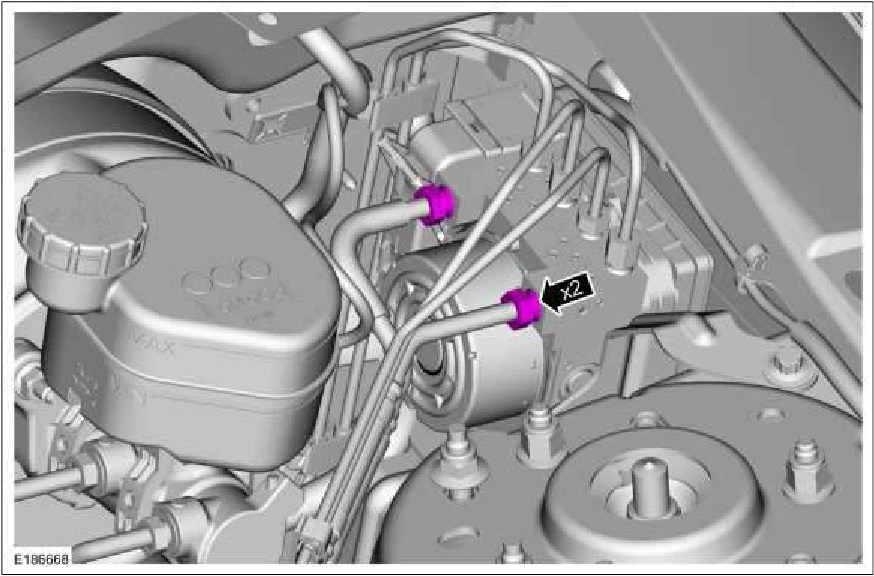

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 1, reference 2919Original colors & callouts · Select to enlarge

13. Unclip the brake tubes.

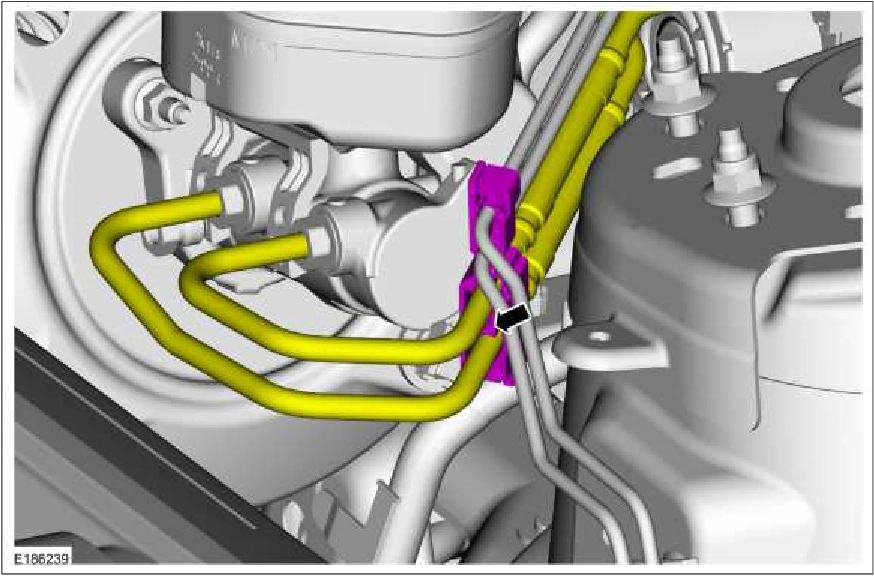

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 2, reference 2919Original colors & callouts · Select to enlarge

14. Remove and discard the 2 master cylinder nuts. Remove the master cylinder and brake tubes. Torque : 17 lb.ft (23 Nm)

Source reference 2919
