Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — 2016 workshop reference 2916

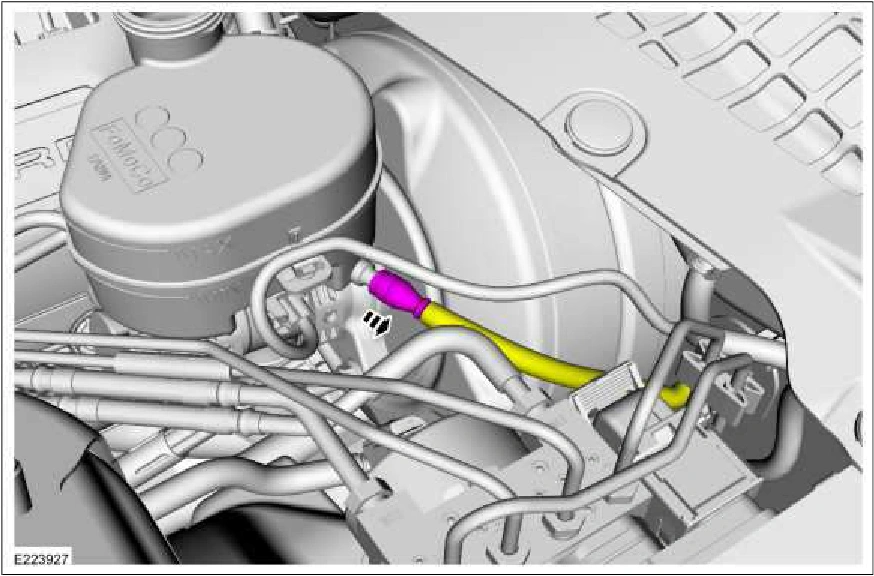

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 1, reference 2916Original colors & callouts · Select to enlarge

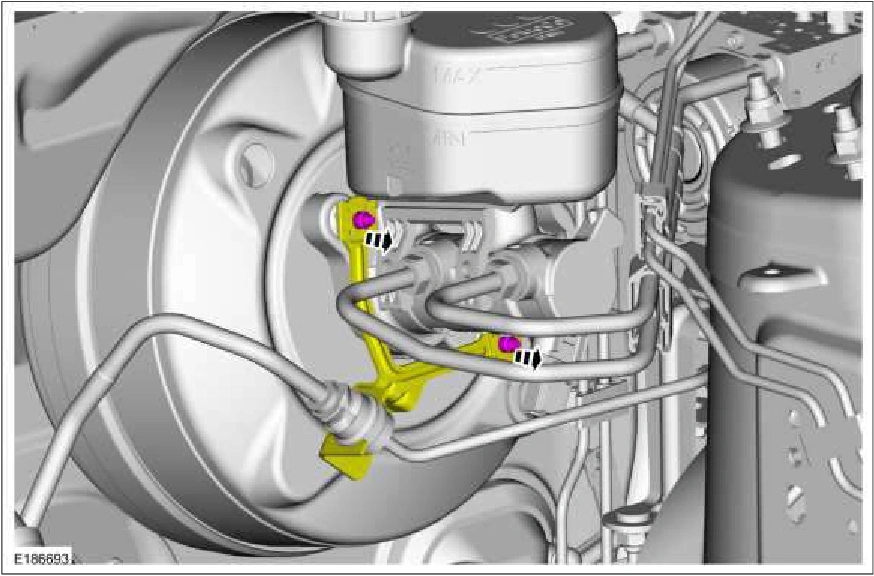

7. Detach the clutch master cylinder tube bracket from the master cylinder studs.

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 2, reference 2916Original colors & callouts · Select to enlarge

All vehicles

Step 8

1. Detach the battery cable retainer.

2. Remove the nuts and the cross brace. Discard the nuts. Torque : 41 lb.ft (55 Nm)

Source reference 2916
