206-07 Power Brake Actuation 2016 Mustang

Removal and Installation Procedure revision date: 11/5/2015

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT

Base Part Number: 2002

Removal

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: 5.0L 32V Ti-VCT engine shown, 5.2L 32V Ti-VCT similar.

All vehicles

1. Remove the cowl panel grill. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

2. Disconnect the battery cables.

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

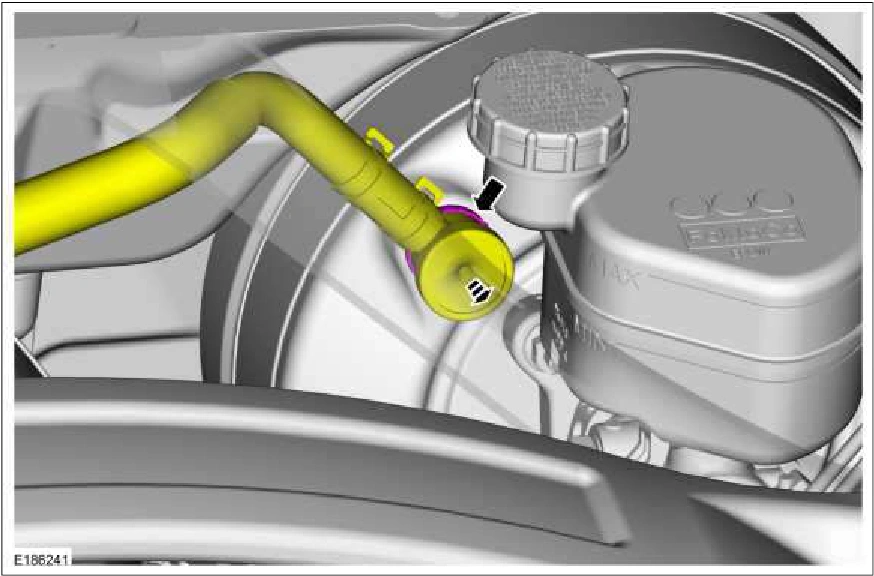

3. Detach the vacuum check valve from the booster and position aside.

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 1, reference 2914Original colors & callouts · Select to enlarge

Vehicles equipped with manual transmission

4. Remove the brake fluid reservoir cap.
