Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT

206-07 Power Brake Actuation

2016 MustangReference 2,915 / 6,619HTML edition

← Chapter contents Procedure contents

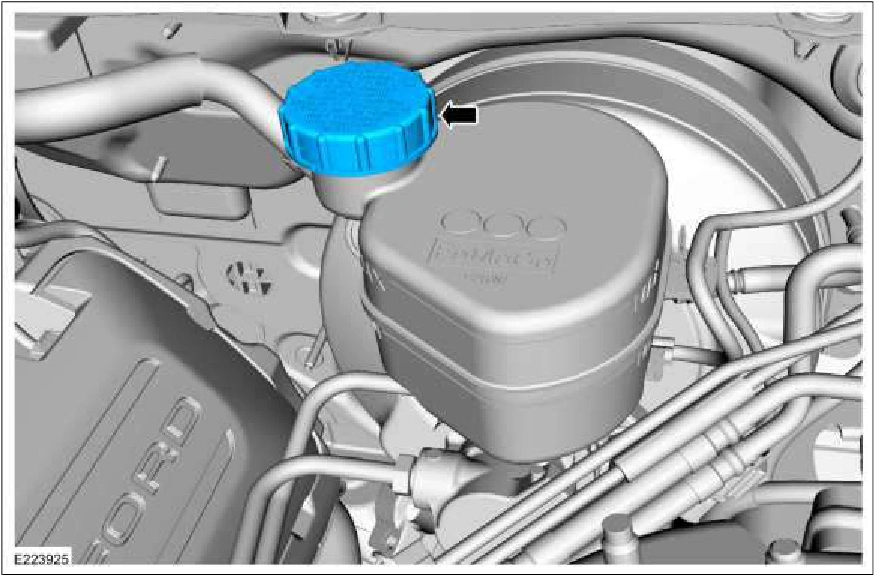

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 1, reference 2915Original colors & callouts · Select to enlarge

5. Using a suitable suction device, syphon the brake fluid from the brake fluid reservoir.

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 2, reference 2915Original colors & callouts · Select to enlarge

6. Disconnect the clutch master cylinder tube.

Source reference 2915
