2016 workshop · Brake System

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT

206-07 Power Brake Actuation

2016 MustangReference 2,918 / 6,619HTML edition

← Chapter contents Procedure contents

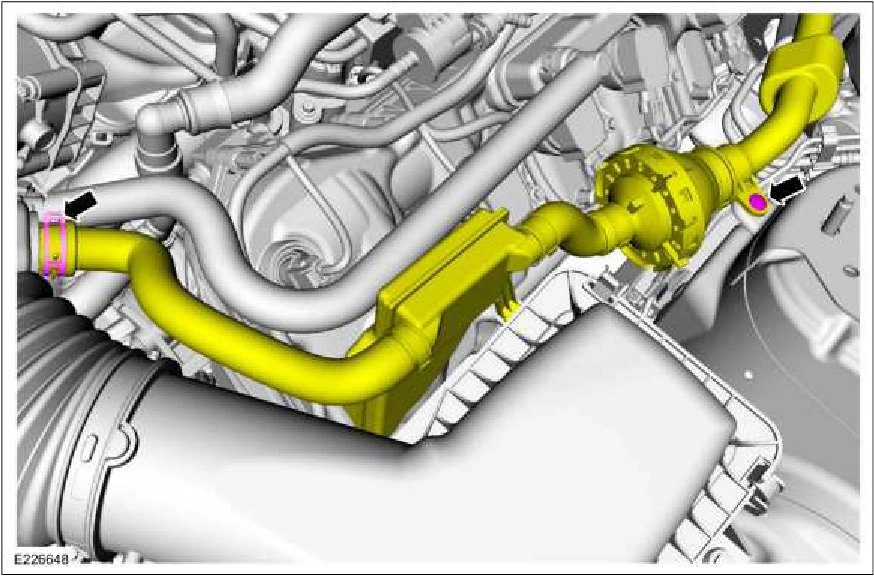

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 1, reference 2918Original colors & callouts · Select to enlarge

Step 11

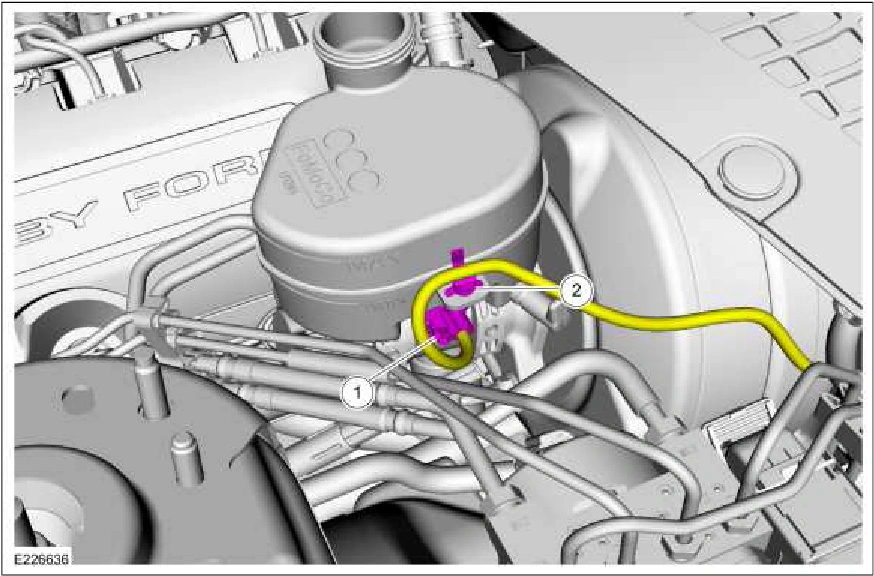

1. Disconnect the brake fluid level sensor electrical connector.

2. Detach the wiring harness retainer from the brake fluid reservoir.

Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT — original illustration 2, reference 2918Original colors & callouts · Select to enlarge

12. Disconnect the 2 brake tubes at the HCU. Torque : 20 lb.ft (27.5 Nm)

Source reference 2918
