16. NOTICE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs

should be positioned on the body structure. Failure to follow these instructions may result in body damage.

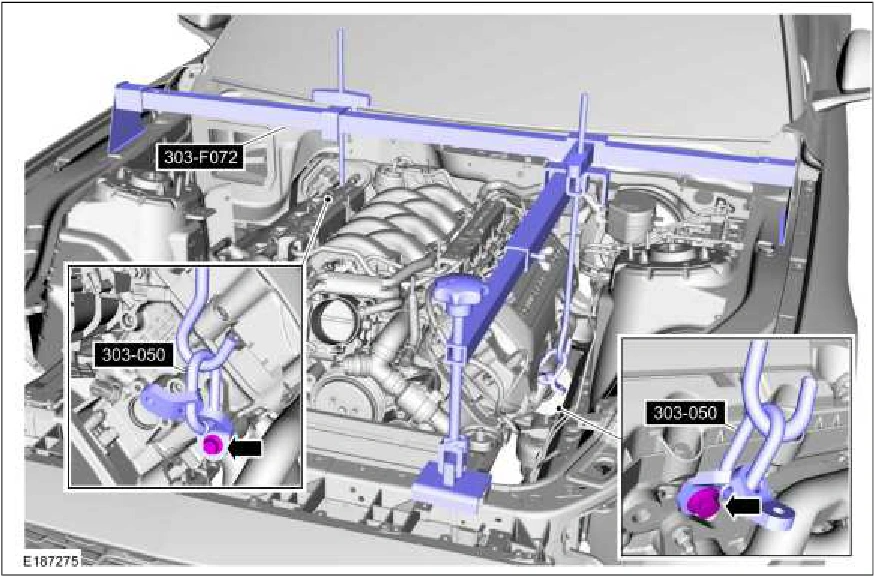

Install the special tools and raise the engine 50 mm (2 inch). Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-050 (T70P-6000) Lifting Bracket, Engine.

Oil Pan — original illustration 2, reference 302Original colors & callouts · Select to enlarge

17. Remove the front wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

18. NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

1. Remove the bolts and the underbody shield.
