Oil Pan — 2016 workshop reference 303

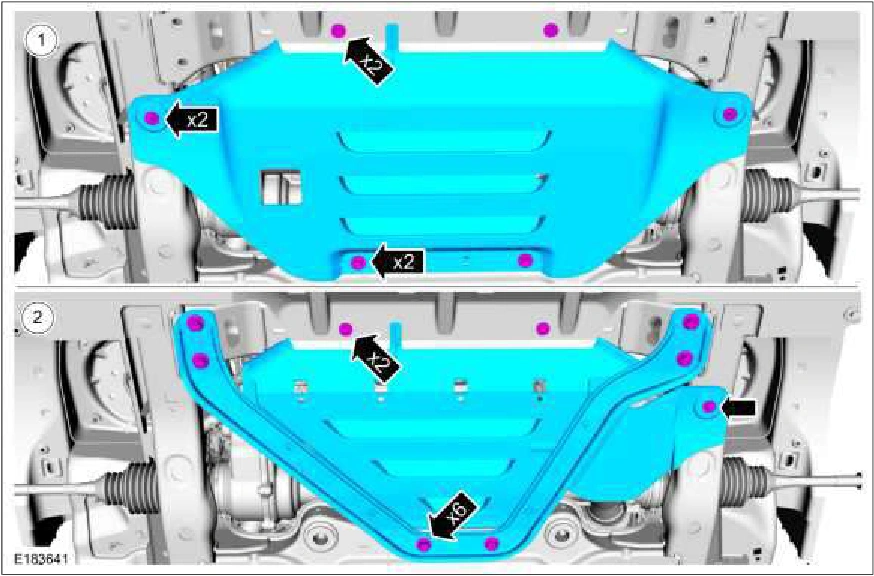

2. Remove the bolts and the subframe bracket and underbody shield assembly.

Oil Pan — original illustration 1, reference 303Original colors & callouts · Select to enlarge

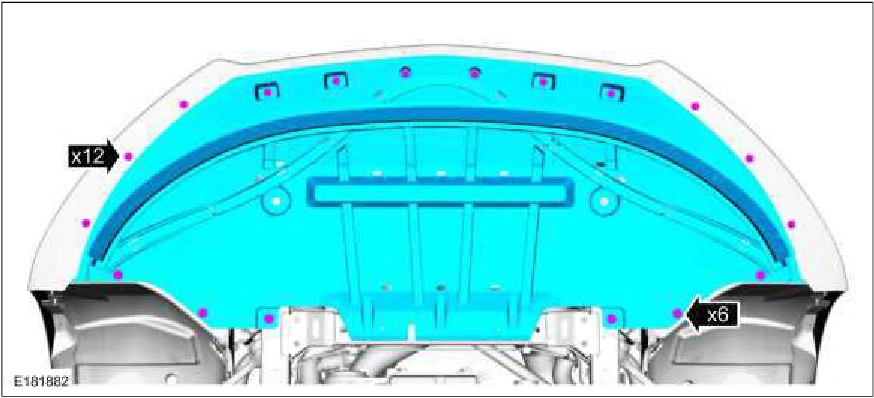

19. Remove the pin-type retainers, bolts and the underbody shield.

Oil Pan — original illustration 2, reference 303Original colors & callouts · Select to enlarge

20. Remove the oil pan drain plug and drain the engine oil.

Use the General Equipment: Oil Drain Equipment Install the oil pan drain plug. Torque : 19 lb.ft (26 Nm)

Source reference 303
