Oil Pan — 2016 workshop reference 306

Oil Pan — original illustration 1, reference 306Original colors & callouts · Select to enlarge

25. Disconnect the oil level sensor electrical connector and wiring harness retainer.

Oil Pan — original illustration 2, reference 306Original colors & callouts · Select to enlarge

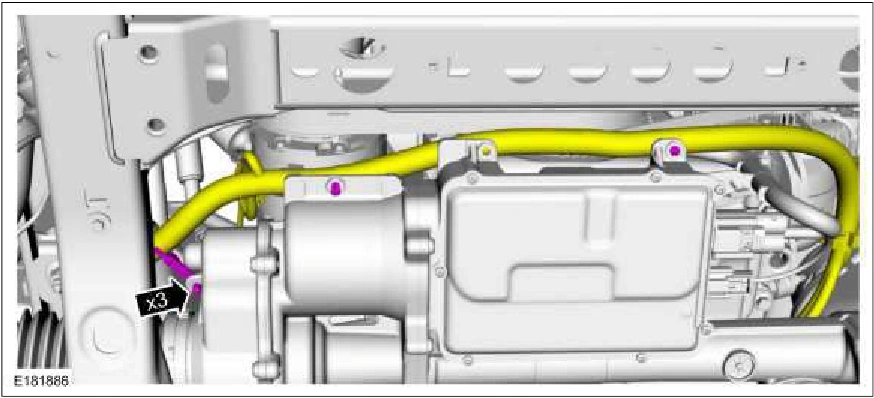

26. Detach the wiring harness pin-type retainers.

Oil Pan — original illustration 3, reference 306Original colors & callouts · Select to enlarge

Source reference 306
