Oil Pan — 2016 workshop reference 307

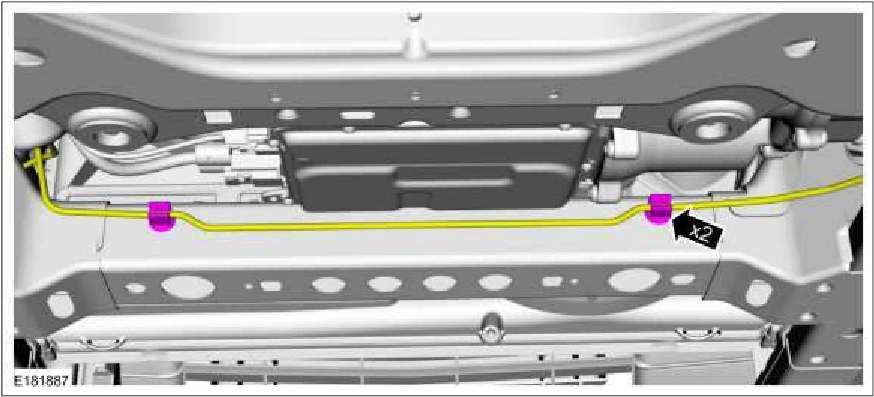

27. Detach the brake tube retainers from the subframe.

Oil Pan — original illustration 1, reference 307Original colors & callouts · Select to enlarge

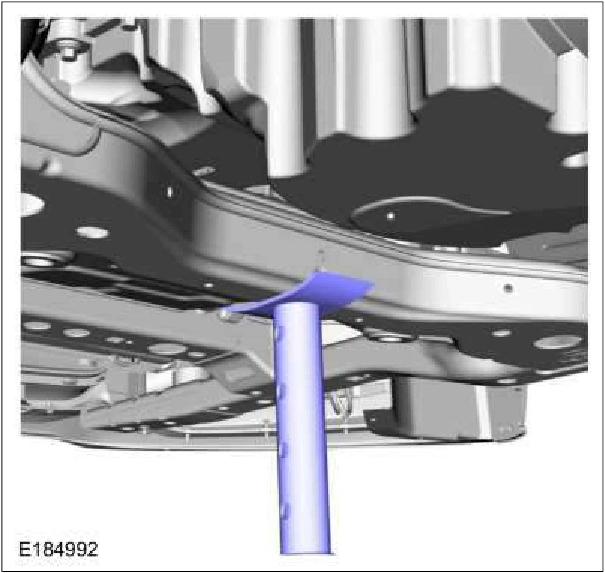

28. Using an adjustable stand, support the subframe. Use the General Equipment: Vehicle/Axle Stands

Oil Pan — original illustration 2, reference 307Original colors & callouts · Select to enlarge

29. Mark the position of the front subframe for reference during installation.
