Oil Pan — 2016 workshop reference 309

Oil Pan — original illustration 1, reference 309Original colors & callouts · Select to enlarge

32. Remove and discard the front subframe nuts.

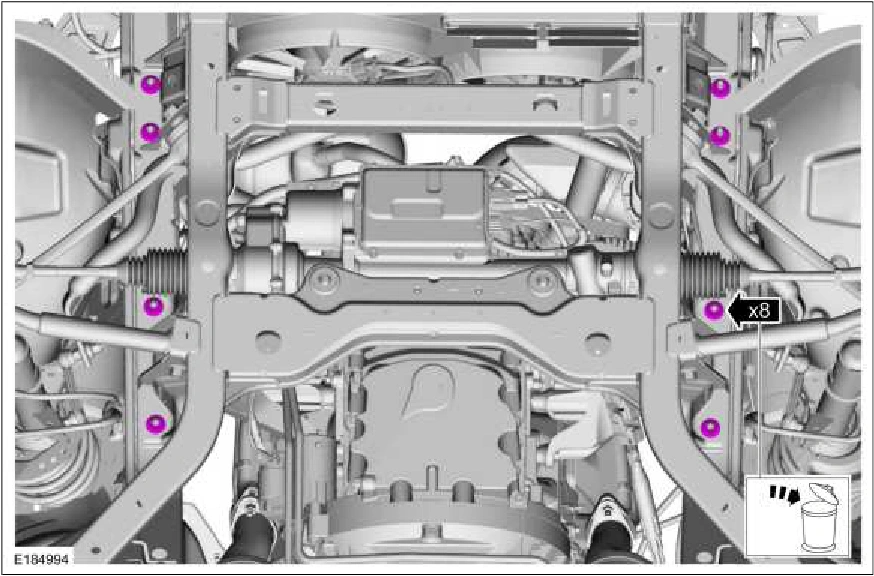

Oil Pan — original illustration 2, reference 309Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

33. Remove the transmission cooling tube nut and bracket from the flexplate inspection cover stud bolt.

Source reference 309
