Oil Pan — 2016 workshop reference 311

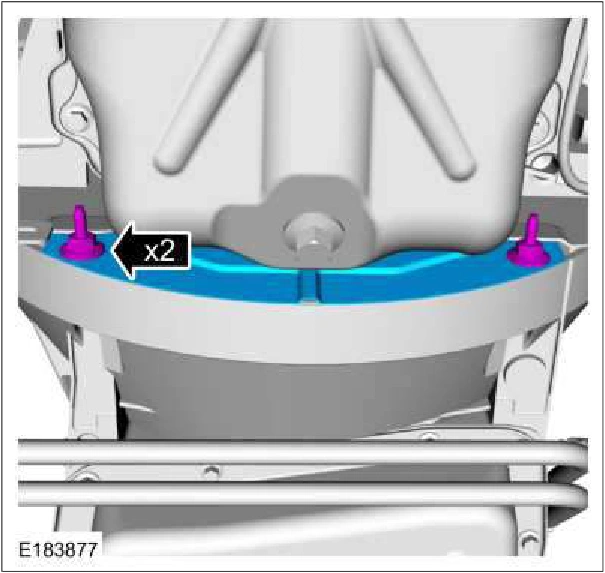

Oil Pan — original illustration 1, reference 311Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

36. Using an adjustable stand, lower the subframe 102 mm (4.0 in). Use the General Equipment: Vehicle/Axle Stands

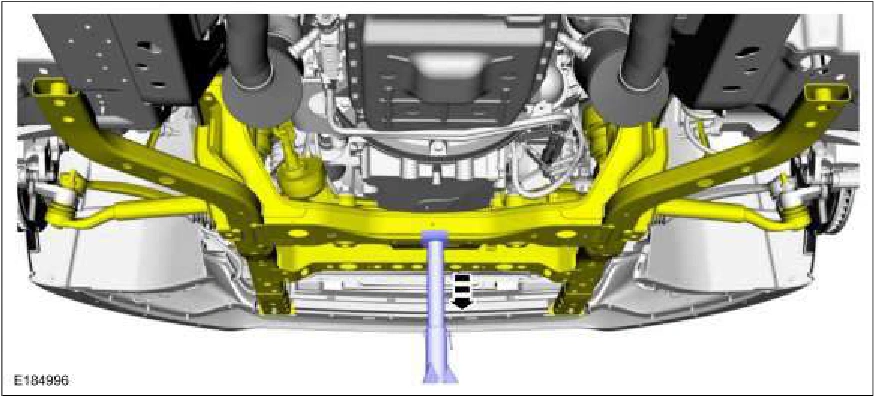

Oil Pan — original illustration 2, reference 311Original colors & callouts · Select to enlarge

37. Remove the bolts, stud bolts and the oil pan.

Source reference 311
