Oil Pan — 2016 workshop reference 308

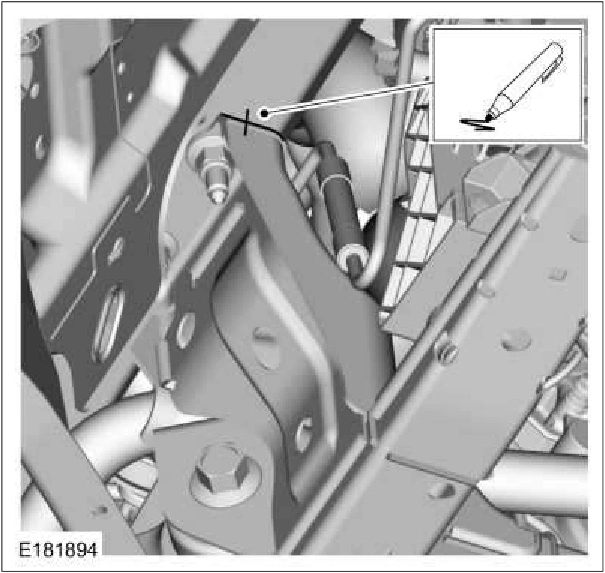

Oil Pan — original illustration 1, reference 308Original colors & callouts · Select to enlarge

30. Mark the position of the rear subframe for reference during installation.

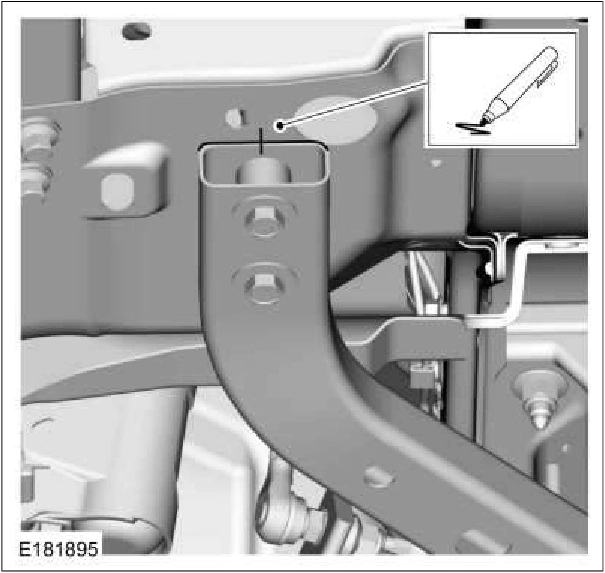

Oil Pan — original illustration 2, reference 308Original colors & callouts · Select to enlarge

31. Remove and discard the rear subframe bolts.
