Oil Pan — 2016 workshop reference 310

Oil Pan — original illustration 1, reference 310Original colors & callouts · Select to enlarge

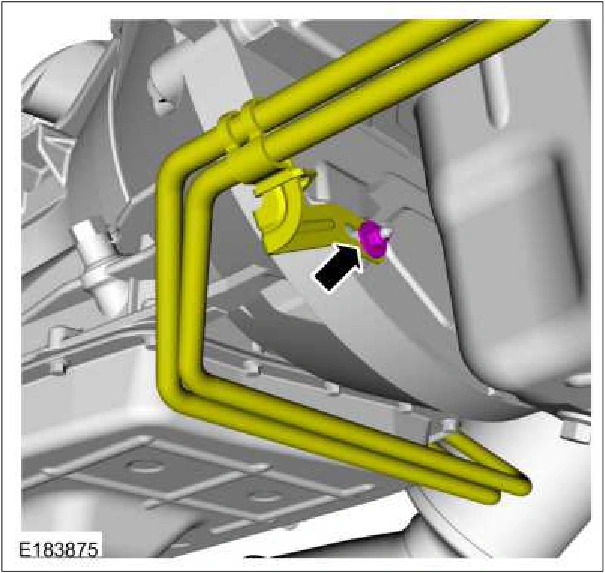

34. Remove the transmission cooling tube bracket nut and position the bracket and tubes aside.

Oil Pan — original illustration 2, reference 310Original colors & callouts · Select to enlarge

35. Remove the stud bolts and the flexplate inspection cover.
