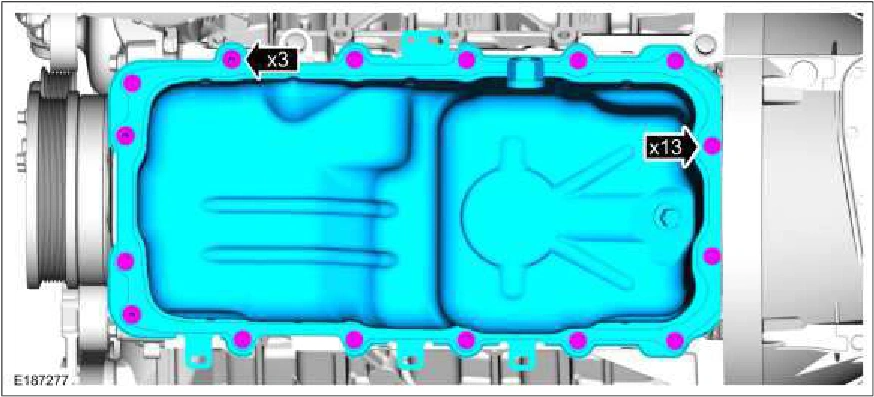

Oil Pan — original illustration 1, reference 312Original colors & callouts · Select to enlarge

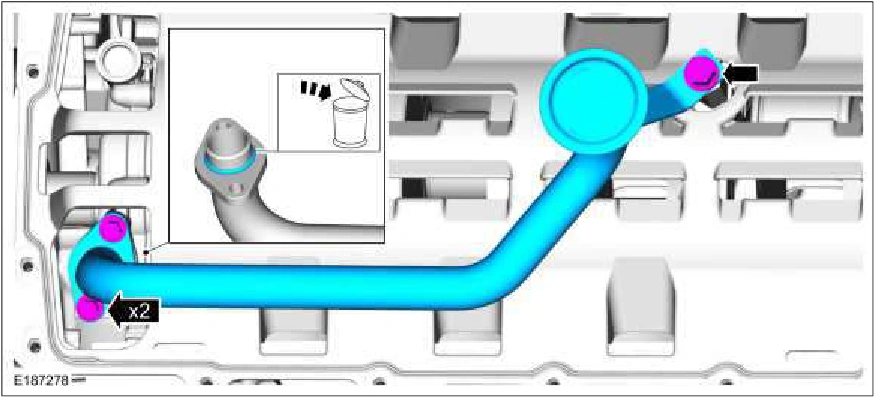

38. Remove the bolts and the oil pump screen and pickup tube.

Remove and discard the O-ring seal.

Oil Pan — original illustration 2, reference 312Original colors & callouts · Select to enlarge

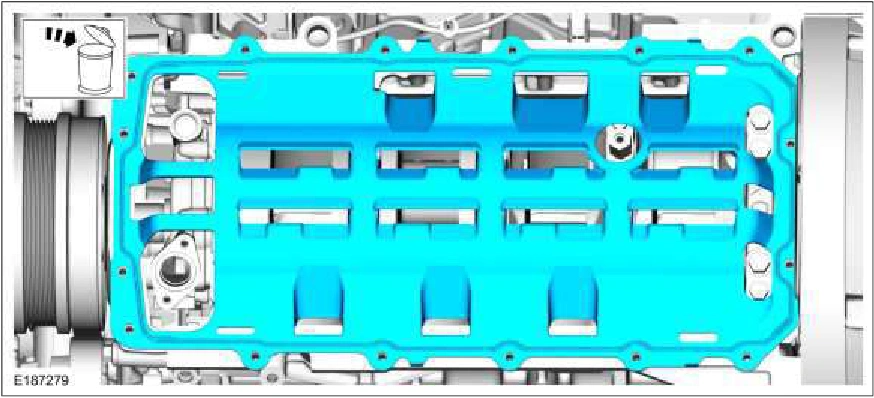

39. Remove and discard the oil pan baffle and gasket.

Oil Pan — original illustration 3, reference 312Original colors & callouts · Select to enlarge

40. NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means

to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths.

Make sure that the mating faces are clean and free of foreign material.
