Oil Pan — 2016 workshop reference 315

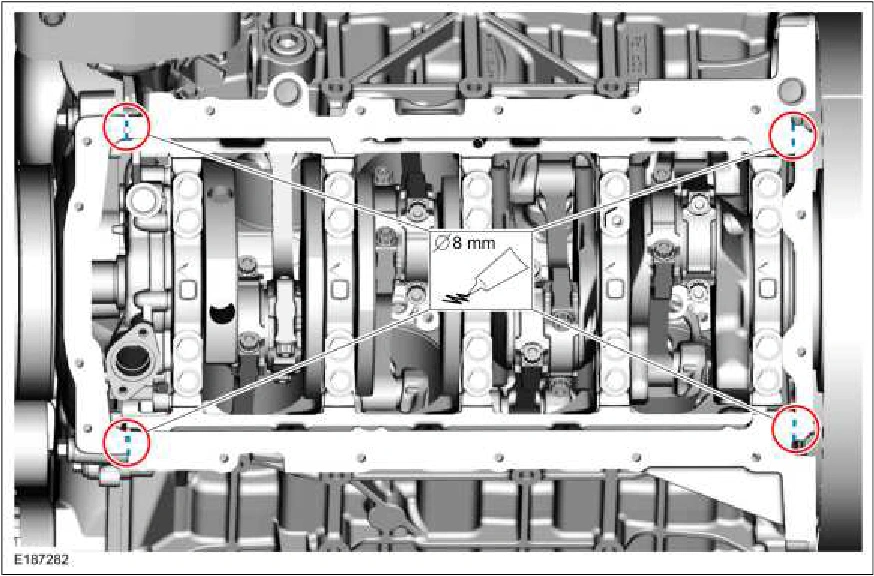

Oil Pan — original illustration 1, reference 315Original colors & callouts · Select to enlarge

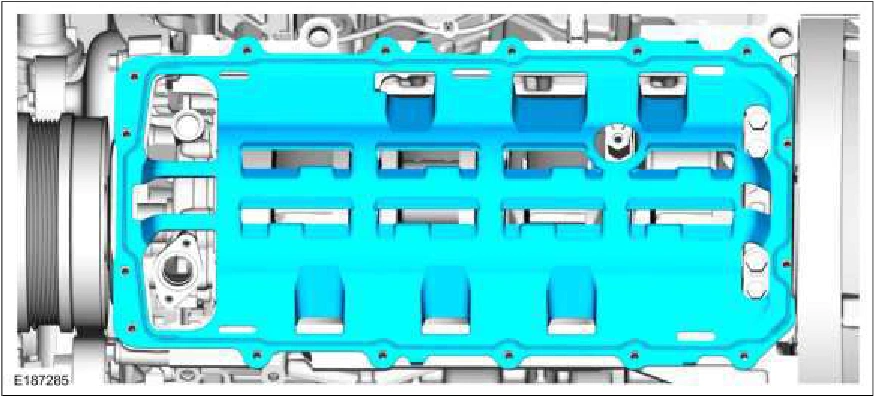

2. Install the new oil pan baffle and gasket.

Oil Pan — original illustration 2, reference 315Original colors & callouts · Select to enlarge

3. Using a new O-ring seal, install the oil pump screen and pickup tube and the bolts. Torque : Oil pump screen and pickup tube-to-oil pump bolts : Stage 1: 89 lb.in (10 Nm) Stage 2: 45° Oil pump screen and pickup tube-to-spacer bolt : 18 lb.ft (25 Nm)

Source reference 315
