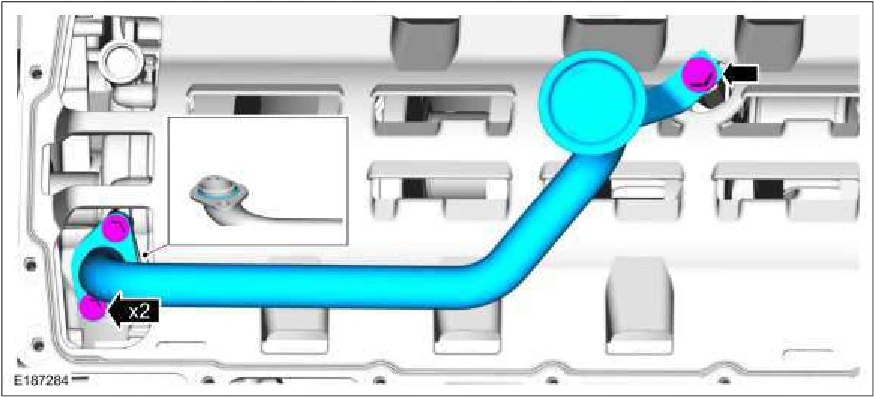

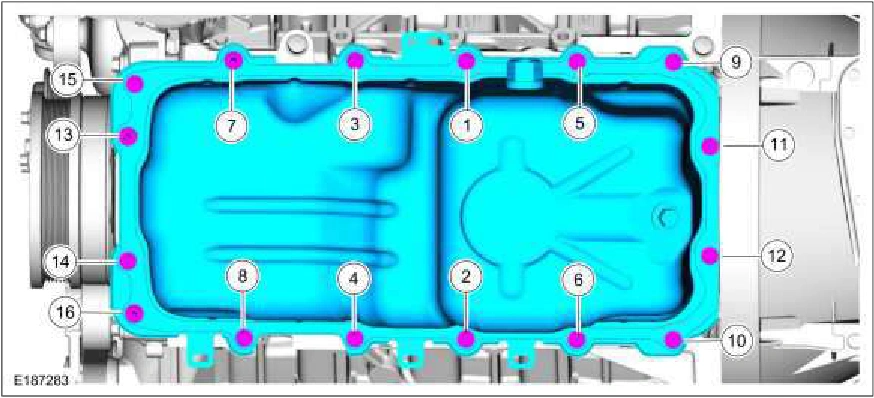

4. NOTE: Fastener locations 7, 13 and 16 are stud bolts.

Install the oil pan and the bolts. Torque : Stage 1: 18 lb.in (2 Nm) Stage 2: 89 lb.in (10 Nm) Stage 3: 45°

Oil Pan — original illustration 2, reference 316Original colors & callouts · Select to enlarge

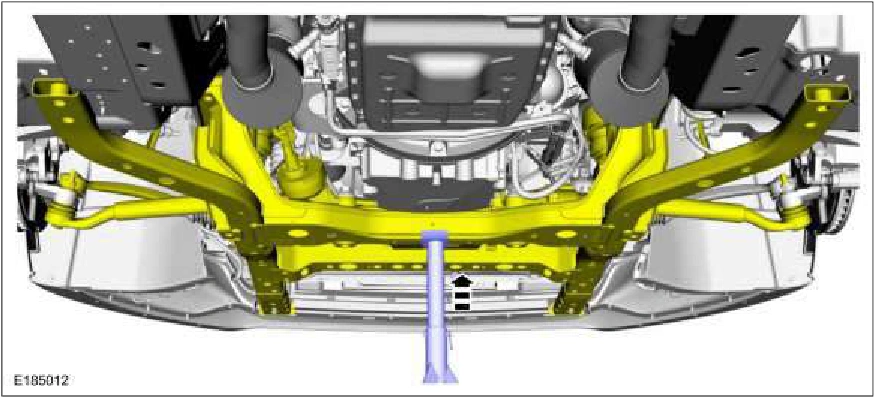

5. Using an adjustable stand, raise the subframe. Use the General Equipment: Vehicle/Axle Stands

Oil Pan — original illustration 3, reference 316Original colors & callouts · Select to enlarge

Source reference 316
