Oil Pan — 2016 workshop reference 319

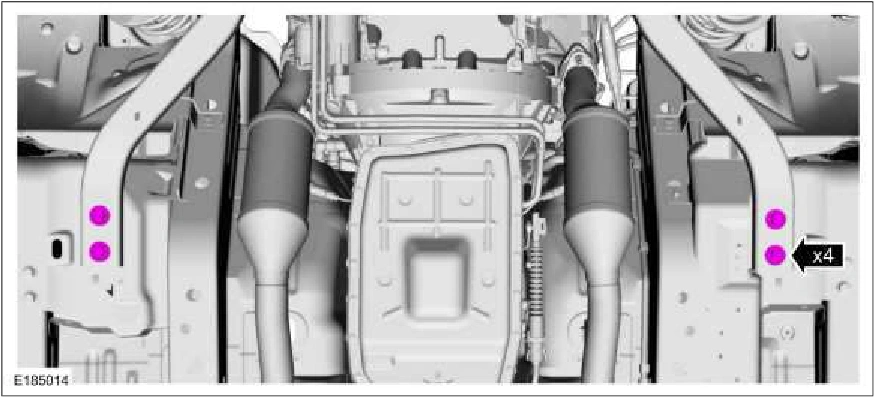

Oil Pan — original illustration 1, reference 319Original colors & callouts · Select to enlarge

11. Tighten the rear subframe bolts in a cross pattern. Torque : 85 lb.ft (115 Nm)

Oil Pan — original illustration 2, reference 319Original colors & callouts · Select to enlarge

12. Tighten the front subframe nuts in a cross pattern. Torque : 85 lb.ft (115 Nm)
