Oil Pan — 2016 workshop reference 321

Oil Pan — original illustration 1, reference 321Original colors & callouts · Select to enlarge

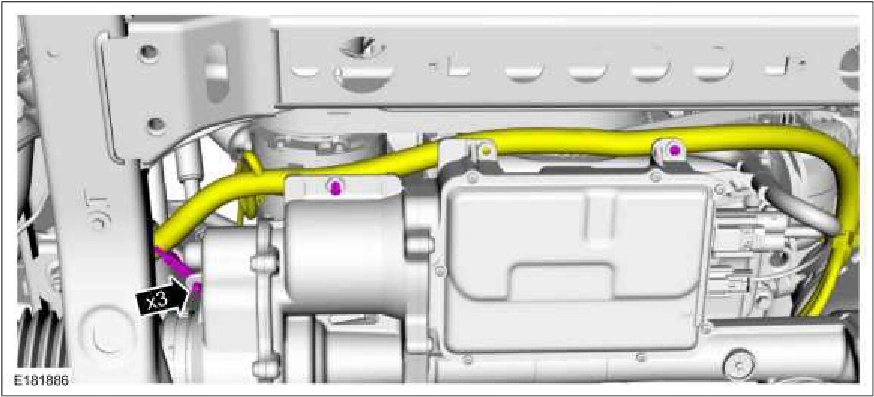

15. Attach the EPAS wiring harness pin-type retainers.

Oil Pan — original illustration 2, reference 321Original colors & callouts · Select to enlarge

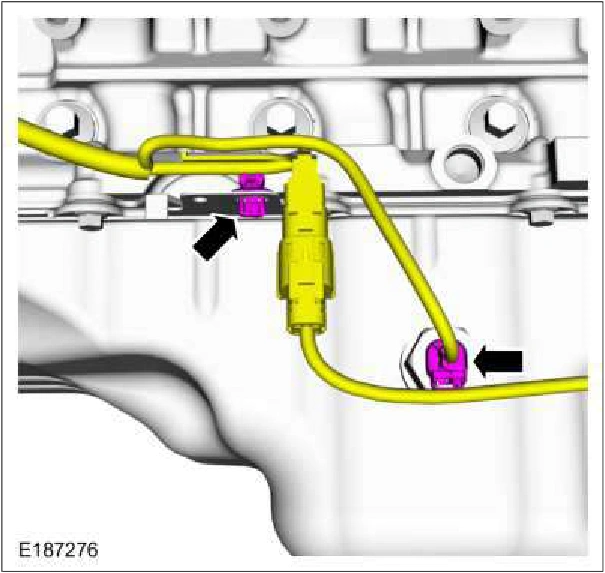

16. Connect the oil level sensor electrical connector and wiring harness retainer.

Oil Pan — original illustration 3, reference 321Original colors & callouts · Select to enlarge
