Oil Pan — 2016 workshop reference 320

Oil Pan — original illustration 1, reference 320Original colors & callouts · Select to enlarge

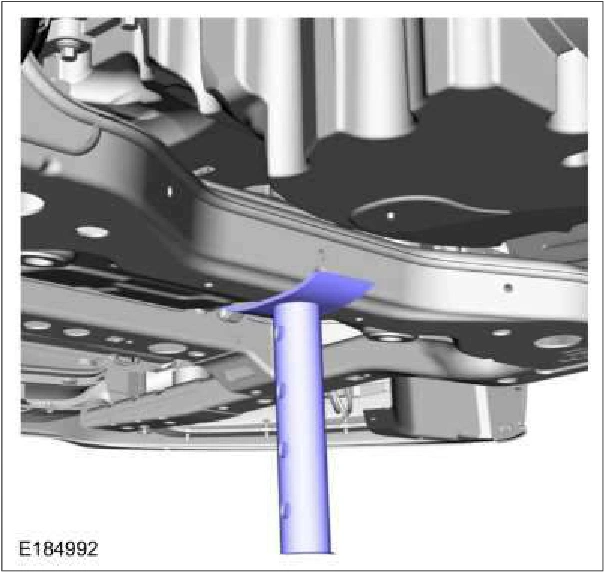

13. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

Oil Pan — original illustration 2, reference 320Original colors & callouts · Select to enlarge

14. Attach the brake line retainers to the subframe.
