Oil Pan — 2016 workshop reference 323

Oil Pan — original illustration 1, reference 323Original colors & callouts · Select to enlarge

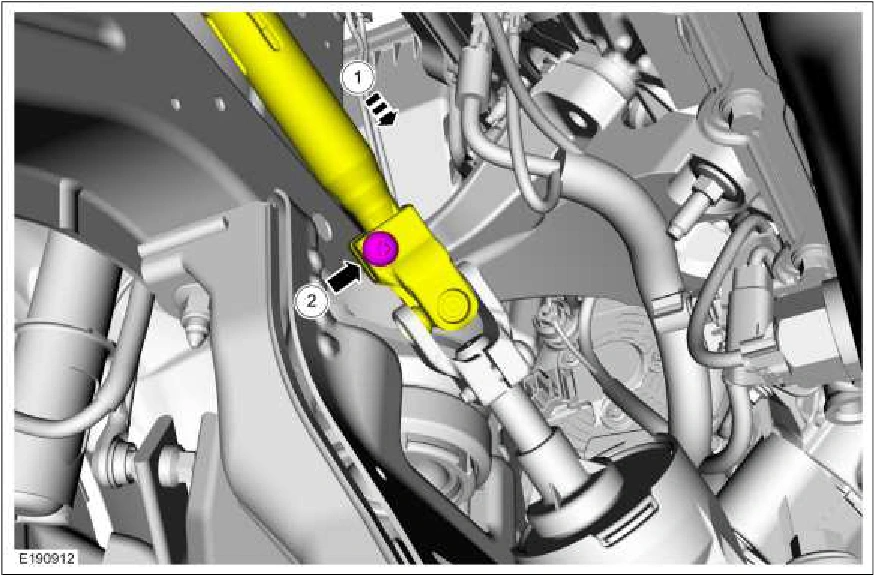

20. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check (211-04 Steering Column, General Procedures).

21. NOTE: Do not lubricate the O-ring seal.

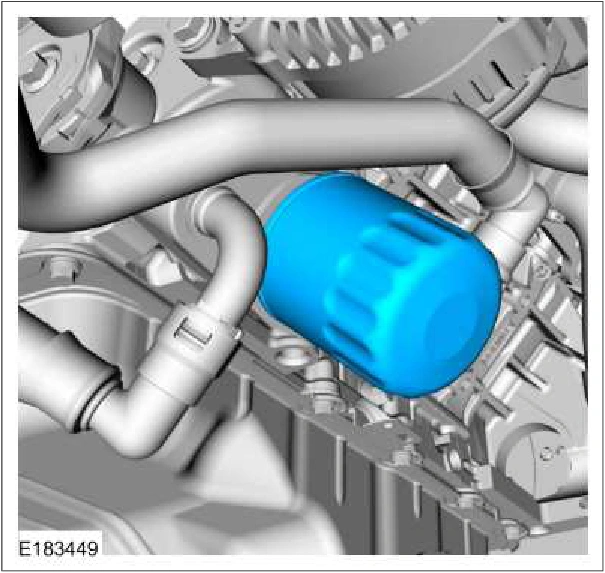

Install a new oil filter. Torque : Stage 1: 44 lb.in (5 Nm) Stage 2: 180°

Oil Pan — original illustration 2, reference 323Original colors & callouts · Select to enlarge

22. Install the underbody shield, bolts and the pin-type retainers.
