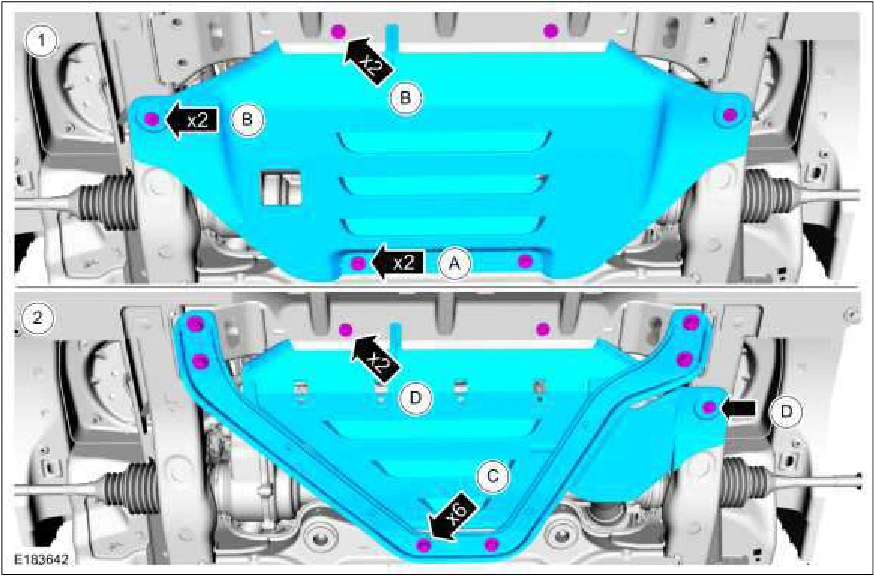

23. NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

1. Install the underbody shield and the bolts. Torque : A: 97 lb.in (11 Nm) B: 18 lb.in (2 Nm)

2. Install the subframe bracket and underbody shield assembly and the bolts. Torque : C: 46 lb.ft (63 Nm) D: 18 lb.in (2 Nm)

Oil Pan — original illustration 2, reference 324Original colors & callouts · Select to enlarge

24. Install the front wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

25. Lower the engine onto the engine mounts and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-050 (T70P-6000) Lifting Bracket, Engine.
