Oil Pan

303-01C Engine - 5.0L

2016 Mustang5.0LReference 317 / 6,619HTML edition
← Chapter contentsProcedure contents

6-Speed Automatic Transmission - 6R80

6. Install the flexplate inspection cover and the stud bolts. Torque : 35 lb.ft (48 Nm)

Oil Pan — original illustration 1, reference 317Original colors & callouts · Select to enlarge

7. Install the transmission cooling tube bracket and nut. Torque : 35 lb.ft (48 Nm)

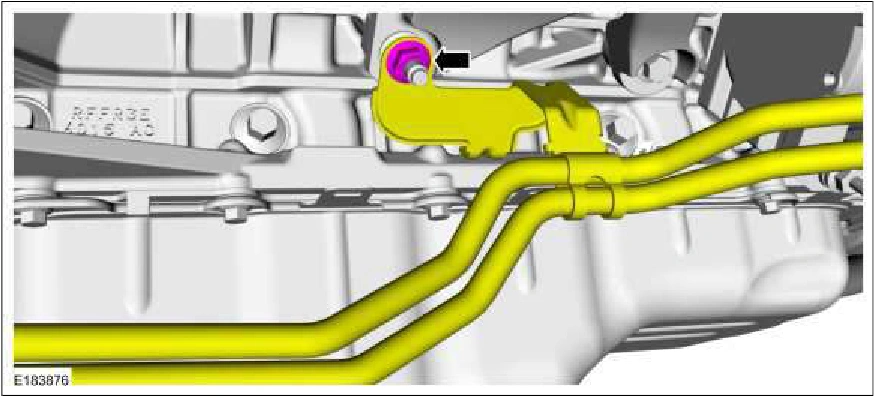

Oil Pan — original illustration 2, reference 317Original colors & callouts · Select to enlarge

8. Install the transmission cooling tube bracket and nut. Torque : 124 lb.in (14 Nm)

Source reference 317
