2016 workshop · Engine

Oil Pan

303-01C Engine - 5.0L

2016 Mustang5.0LReference 318 / 6,619HTML edition
← Chapter contentsProcedure contents
Oil Pan — original illustration 1, reference 318Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

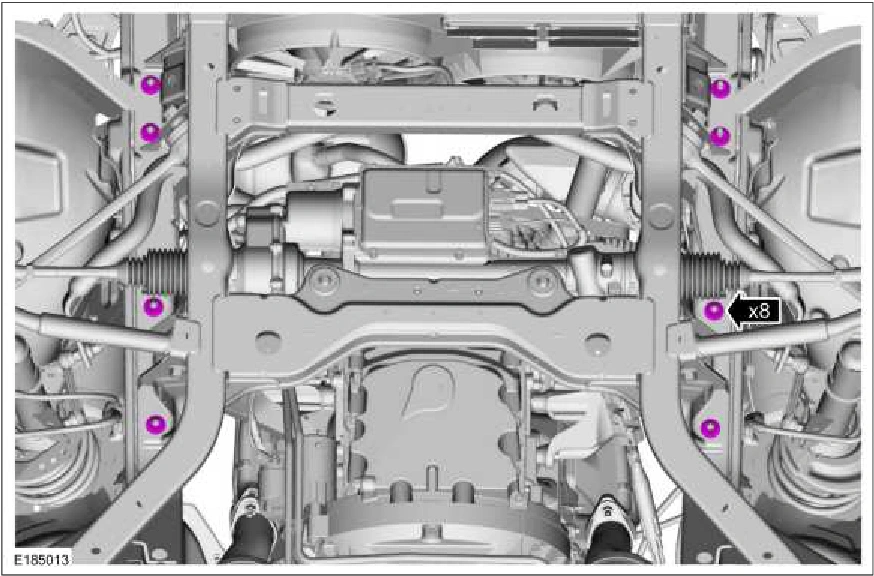

9. Install the new front subframe nuts loosely.

Oil Pan — original illustration 2, reference 318Original colors & callouts · Select to enlarge

10. Use a suitable alignment tool with a 15 mm (0.59 in) OD shaft that is long enough to go through the

subframe and body. Align the subframe to the alignment marks made during removal. Install the new rear subframe bolts loosely.

Source reference 318
