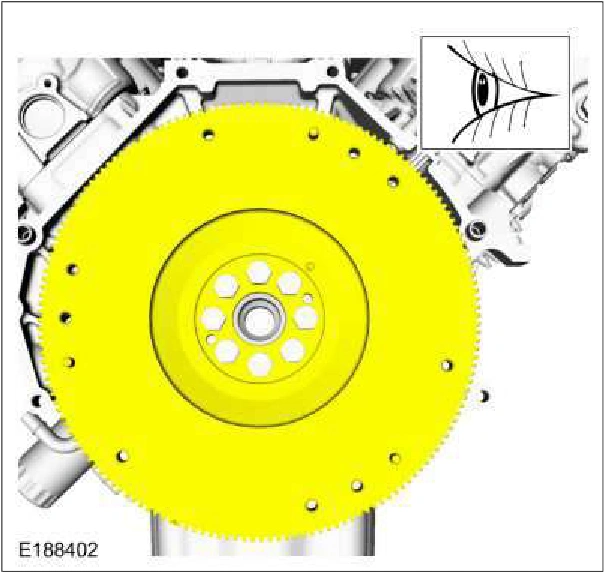

2. NOTICE: If installing a new pressure plate and/or flywheel, align the paint dot on the pressure plate
as close as possible to the paint dot on the flywheel or a clutch system vibration can occur.
NOTICE: If installing the original pressure plate, align it using the index-marks made during removal or a clutch system vibration can occur.

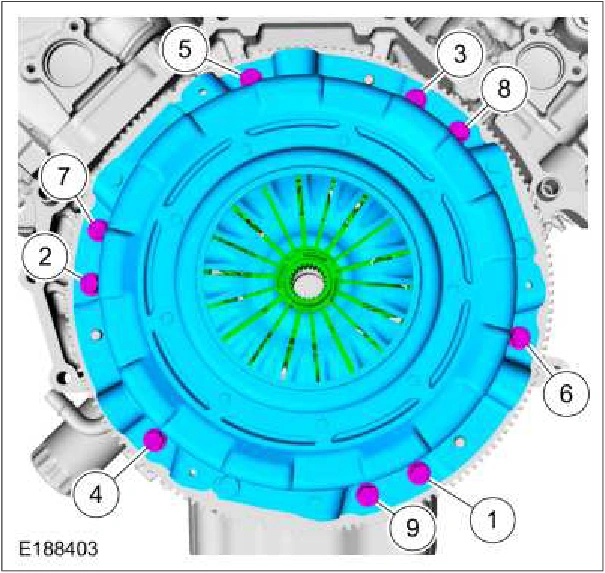

Using a clutch aligner, position the clutch disc on the flywheel. If installing the original pressure plate, align the pressure plate to the flywheel using the index-marks made during removal. If installing a new pressure plate, align the pressure plate to the flywheel using the paint dots. Install new pressure plate bolts by turning the bolts 1 turn at a time in a star pattern until the clutch is fully secured. Use the General Equipment: Clutch Alignment Tool Torque : Stage 1: 46 lb.ft (63 Nm) Stage 2: 60°
