308-02 Clutch Controls 2016 Mustang

Description and Operation Procedure revision date: 08/8/2014

Clutch Controls - Component Location

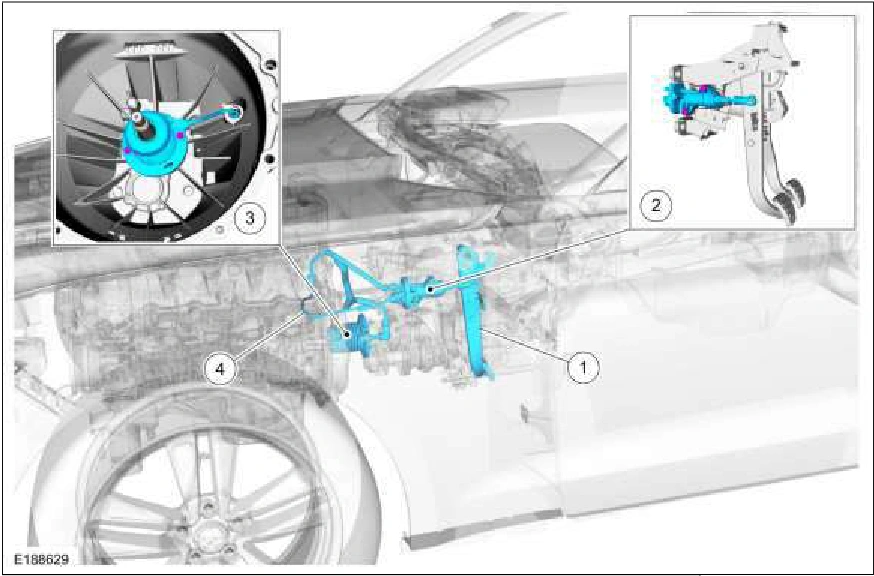

Clutch Controls - Component Location — original illustration 1, reference 3024Original colors & callouts · Select to enlarge
Item	Description
1	Clutch pedal
2	Clutch master cylinder
3	Clutch slave cylinder
4	Clutch hydraulic fluid tubes

Source reference 3024
