Clutch Master Cylinder
Removal
WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call the Poison Control Center at: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
1. Remove the brake pedal and bracket assembly. Refer to: Brake Pedal and Bracket - 6-Speed Manual Transmission - 3160/6-Speed Manual Transmission -
MT82 (206-06 Hydraulic Brake Actuation, Removal and Installation).

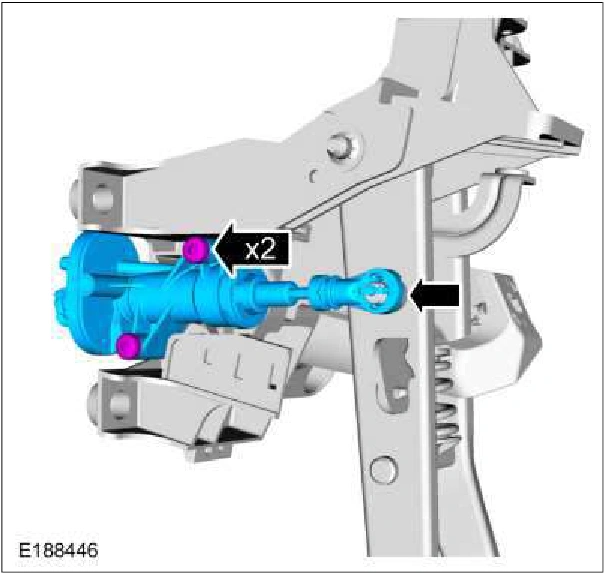

2. Remove the clutch master cylinder bolts, then disconnect the clutch master cylinder from the clutch pedal and remove the master cylinder. Torque : 89 lb.in (10 Nm)
Installation
1. To install, reverse the removal procedure.
2. Bleed the clutch hydraulic system. Refer to: Clutch System Bleeding (308-02 Clutch Controls, General Procedures).
