Clutch Slave Cylinder
Removal
WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow these instructions may result in serious personal injury.
WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call the Poison Control Center at: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
1. Remove the transmission. Refer to: Transmission - 2.3L EcoBoost (201kW/273PS) (308-03A Manual Transmission - 6-Speed Manual Transmission - MT82, Removal). Refer to: Transmission - 3.7L Duratec (227kW/301PS) (308-03A Manual Transmission - 6-Speed Manual Transmission - MT82, Removal). Refer to: Transmission - 5.0L 32V Ti-VCT (308-03A Manual Transmission - 6-Speed Manual Transmission - MT82, Removal). Refer to: Transmission (308-03B Manual Transmission - 6-Speed Manual Transmission - 3160, Removal).

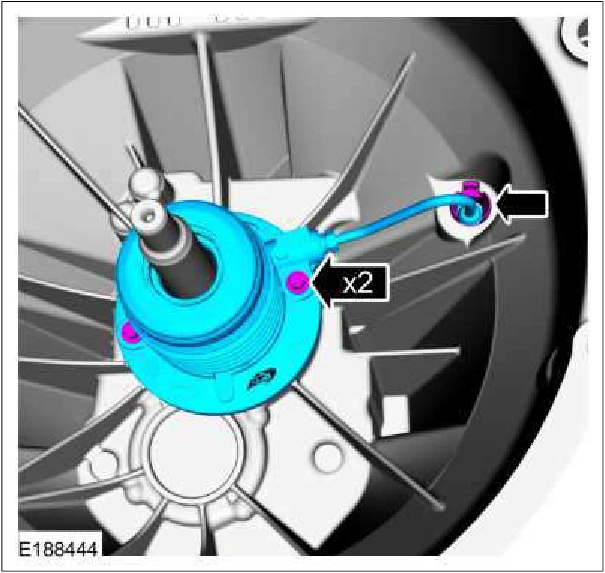

2. Remove the clutch slave cylinder bolts. Pull the clutch slave cylinder outward and release the tube from the retaining clip.
3. Inspect the clutch slave cylinder for a damaged boot, leaking brake fluid or a worn or damaged release bearing. Rotate the release bearing while applying pressure. If the bearing rotation is rough, install a new clutch slave cylinder.
