2016 workshop · Manual Transmission, Clutch and Transfer Case

Clutch Slave Cylinder

308-02 Clutch Controls

2016 MustangReference 3,029 / 6,619HTML edition
← Chapter contentsProcedure contents

Installation

1. Install a new retaining clip.

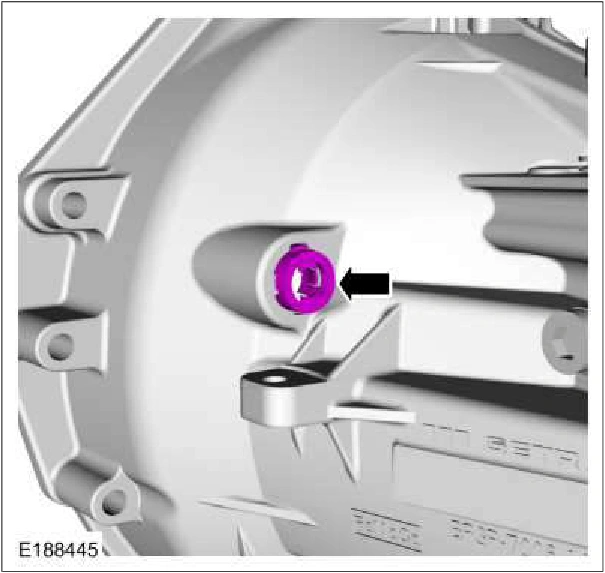

Clutch Slave Cylinder — original illustration 1, reference 3029Original colors & callouts · Select to enlarge

2. Position the clutch slave cylinder in the transmission, inserting the tube through the retaining clip. Install the clutch slave cylinder bolts. Torque : 97 lb.in (11 Nm)

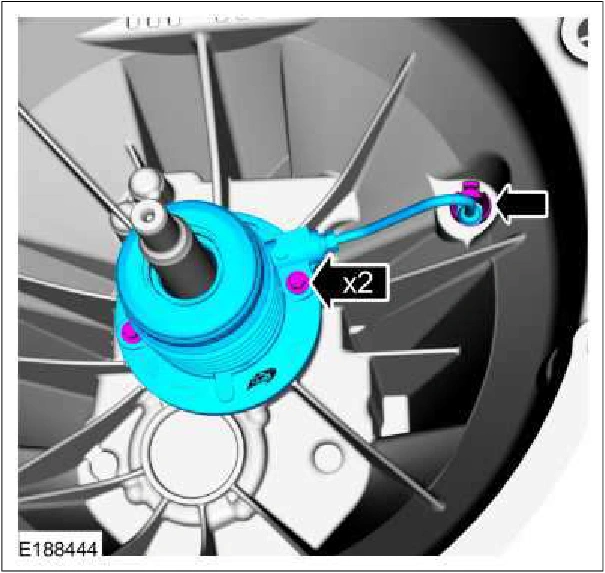

Clutch Slave Cylinder — original illustration 2, reference 3029Original colors & callouts · Select to enlarge

3. Install the transmission Refer to: Transmission - 2.3L EcoBoost (201kW/273PS) (308-03A Manual Transmission - 6-Speed Manual Transmission - MT82, Installation). Refer to: Transmission - 3.7L Duratec (227kW/301PS) (308-03A Manual Transmission - 6-Speed Manual Transmission - MT82, Installation). Refer to: Transmission - 5.0L 32V Ti-VCT (308-03A Manual Transmission - 6-Speed Manual Transmission

Source reference 3029
