Internal Gearshift Mechanism
Item | Description | |
1 | Shift shaft assembly | |
2 | Reverse shift rail | |
3 | Reverse shift fork | |
4 | Shift fork pivot bolts | |
5 | 1st/2nd shift rail | |
6 | 1st/2nd shift fork | |
7 | 3rd/4th shift rail | |
8 | 3rd/4th shift fork | |
9 | 5th/6th shift rail | |
10 | 5th/6th shift fork | |
11 | Shift shaft stop pin | |
12 | Shift shaft détente | |
13 | Shift rail detents | |

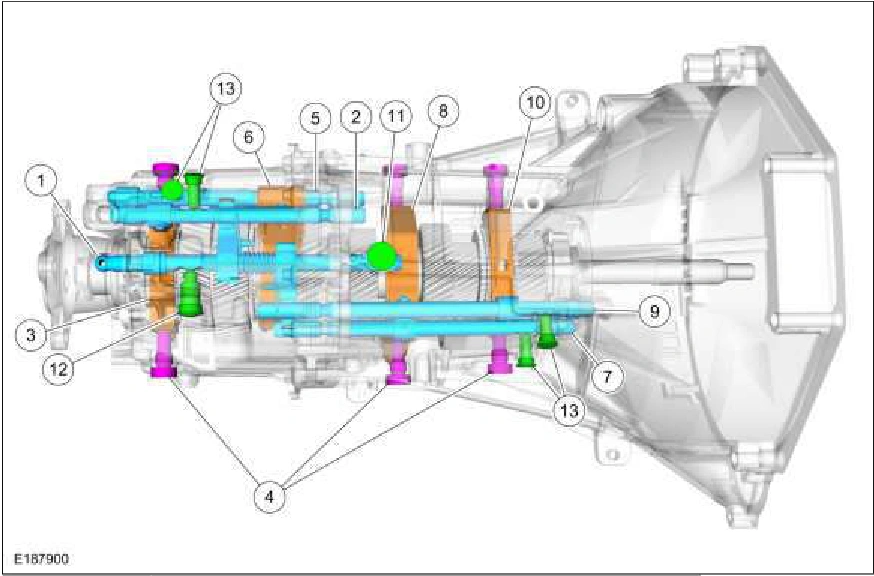

Transmission Exploded View
