Input Shaft Seal - 5.0L 32V Ti-VCT — 2016 workshop reference 3062

308-03A Manual Transmission - 6-Speed Manual Transmission - 2016 Mustang MT82

Procedure revision date:

Removal and Installation

04/30/2015

Input Shaft Seal - 5.0L 32V Ti-VCT

Special Tool(s) / General Equipment

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3062Original colors & callouts · Select to enlarge	308-375 Remover, Input Shaft Seal TKIT-1999-F/FLM/LT TKIT-2005U-M
	308-806 Installer, Front Seal TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Slide Hammer

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3062Original colors & callouts · Select to enlarge

Removal

1. Remove the clutch slave cylinder. Refer to: Clutch Slave Cylinder (308-02 Clutch Controls, Removal and Installation).

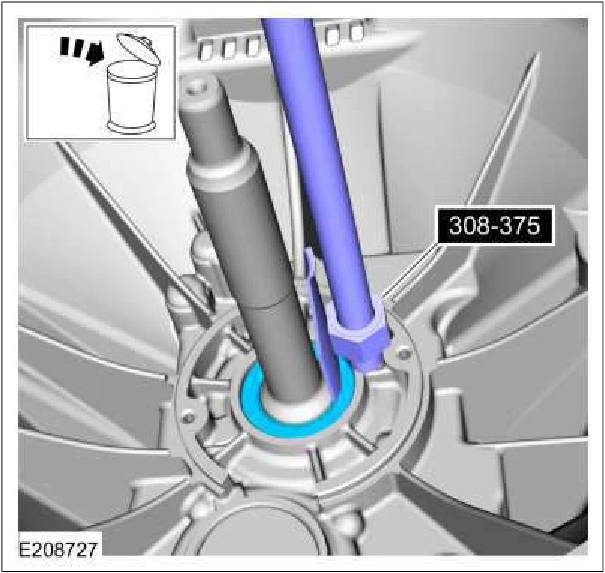

2. Using the special tools, remove and discard the input shaft seal. Use Special Service Tool: 308-375 Remover, Input Shaft Seal. Use the General Equipment: Slide Hammer

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3062Original colors & callouts · Select to enlarge

Installation

1. Using the special tools, install the input shaft seal. Use Special Service Tool: 308-806 Installer, Front Seal.

Source reference 3062
