Transmission Draining and Filling
Special Tool(s) / General Equipment
Fluid Suction Gun
Materials
Name | Specification |
|---|---|
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC | WSS-M2C200-D2 |
1. NOTE: Make sure that the vehicle is level.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

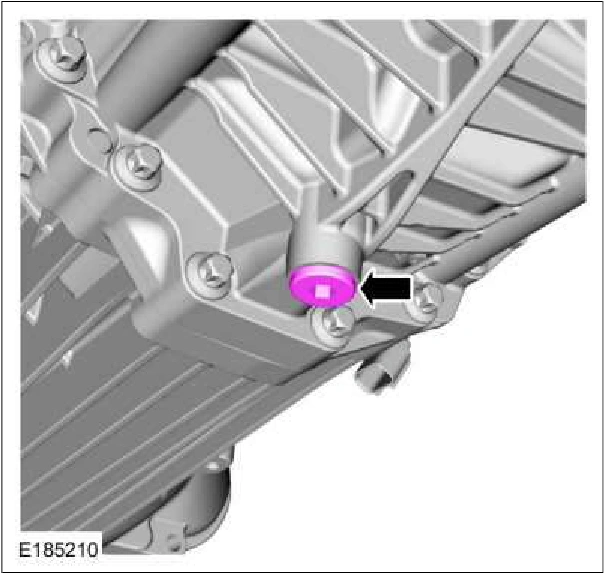

2. Remove the drain plug and drain the transmission fluid. Torque : 26 lb.ft (35 Nm)
3. Remove the fill plug.
Source reference 3059
