Transmission Fluid Level Check

308-03A Manual Transmission - 6-Speed Manual Transmission - 2016 Mustang MT82

Procedure revision date:

General Procedures

04/30/2015

Special Tool(s) / General Equipment

Fluid Suction Gun

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

1. NOTE: Make sure that the vehicle is level.

Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

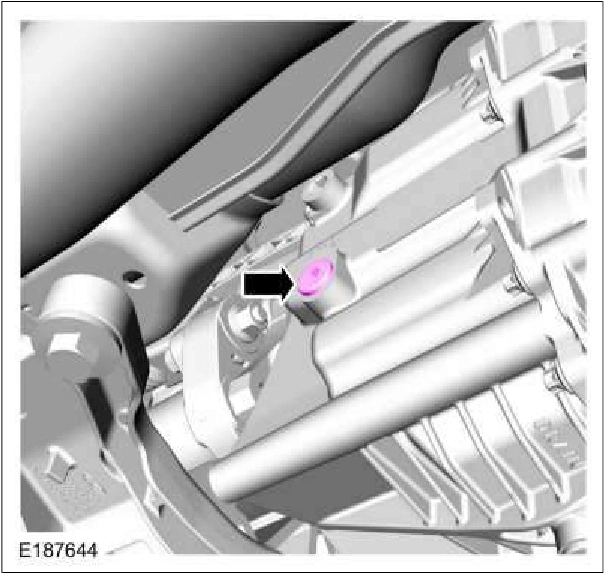

2. Remove the fill plug.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3056Original colors & callouts · Select to enlarge

3. Add or remove transmission fluid as necessary. Refer to: Specifications (308-03A Manual Transmission - 6-Speed Manual Transmission - MT82, Specifications). Use the General Equipment: Fluid Suction Gun Material : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Source reference 3056
