308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3067

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3067Original colors & callouts · Select to enlarge

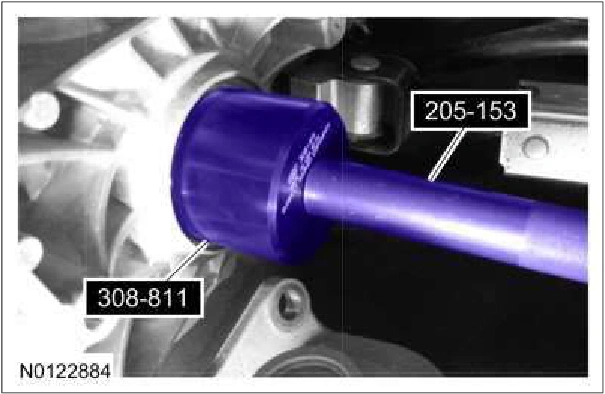

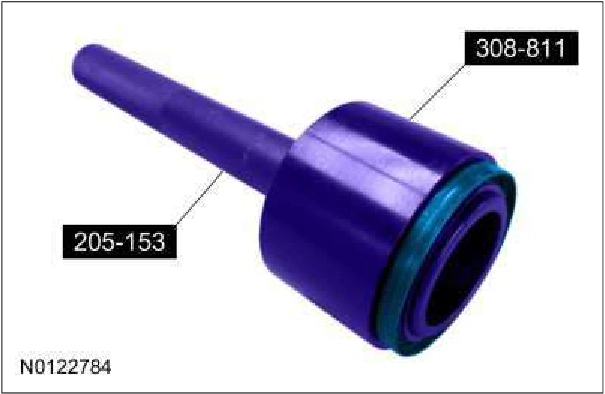

2. Using the special tools, install a new seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 308-811 Installer, Rear Seal.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3067Original colors & callouts · Select to enlarge

3. Using the special tools, install the output shaft flange. Use Special Service Tool: 308-808 Installer, Rear Flange. , 308-809 Installer, Syncro Gear Pack.
