Transmission Support Insulator

308-03A Manual Transmission - 6-Speed Manual Transmission - 2016 Mustang MT82

Procedure revision date:

Removal and Installation

04/30/2015

Special Tool(s) / General Equipment

Transmission Jack

Retaining Strap

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

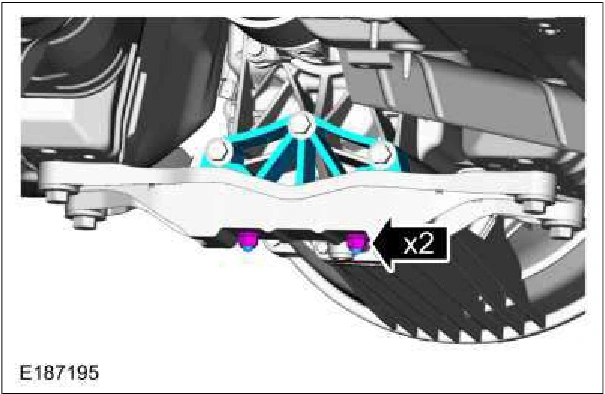

2. Remove the transmission support insulator nuts.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3070Original colors & callouts · Select to enlarge

3. Support the transmission with a transmission jack. Secure the transmission to the transmission jack. Use the General Equipment: Transmission Jack Use the General Equipment: Retaining Strap

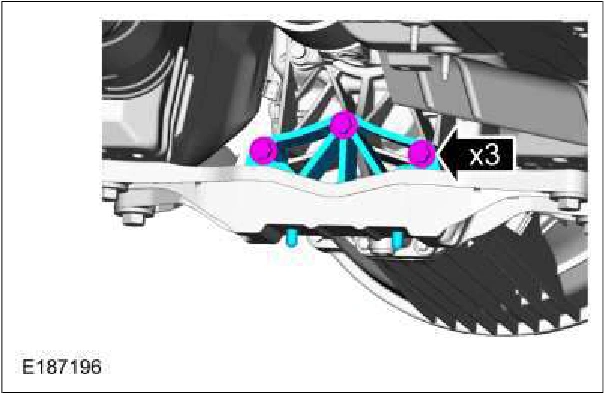

4. Remove the transmission support insulator bolts and the transmission support insulator.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3070Original colors & callouts · Select to enlarge

Installation
