2016 workshop · Manual Transmission, Clutch and Transfer Case

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82

2016 MustangMT82Reference 3,071 / 6,619HTML edition

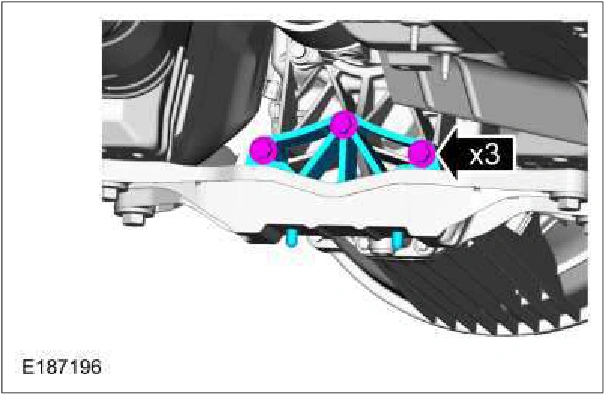

1. Install the transmission support insulator and the bolts. Torque : 76 lb.ft (103 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3071Original colors & callouts · Select to enlarge

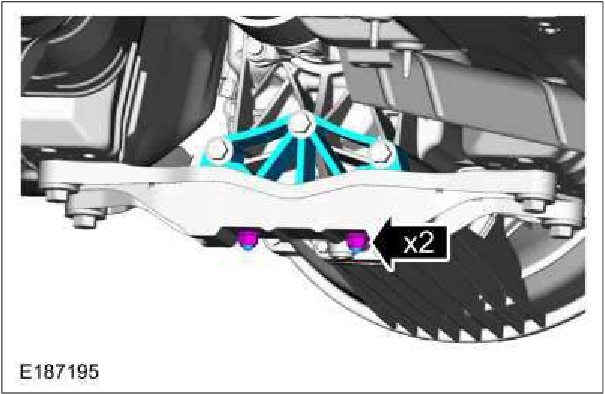

2. Install the transmission support insulator nuts. Torque : 52 lb.ft (70 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3071Original colors & callouts · Select to enlarge

Source reference 3071
