Installation

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82

2016 MustangMT82Reference 3,073 / 6,619HTML edition

← Chapter contents

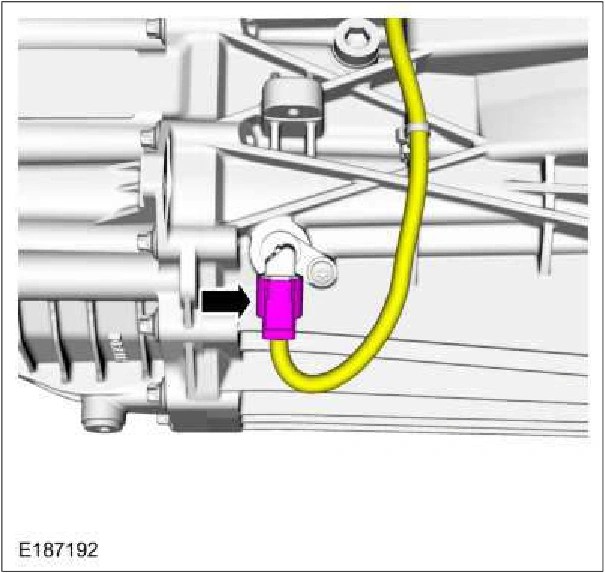

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3073Original colors & callouts · Select to enlarge

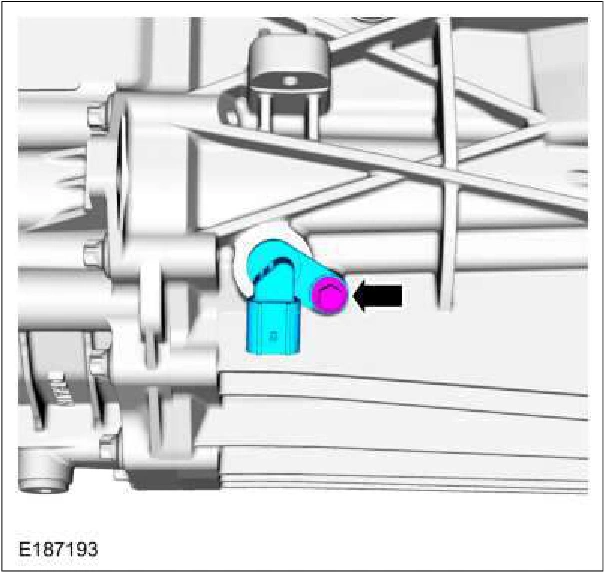

4. Remove the VSS bolt and the VSS.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3073Original colors & callouts · Select to enlarge

Installation

1. Install the VSS and the VSS bolt. Torque : 89 lb.in (10 Nm)

Source reference 3073
