Transmission - 5.0L 32V Ti-VCT
Base Part Number: 7000
Special Tool(s) / General Equipment
Transmission Jack
WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow these instructions may result in serious personal injury.
1. Disconnect the battery. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

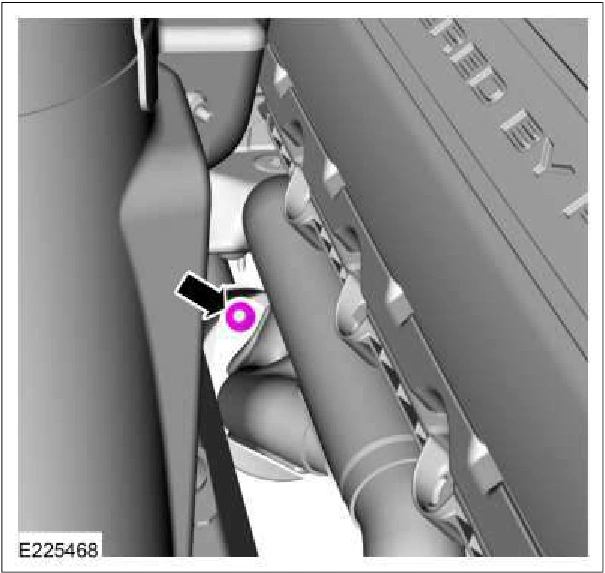

2. Remove the upper RH catalytic converter nut.
3. NOTE: Support the transmission with a transmission jack for gearshift lever removal.
Remove the gearshift lever. Refer to: Gearshift Lever (308-06A Manual Transmission External Controls - 6-Speed Manual Transmission - MT82, Removal and Installation). Use the General Equipment: Transmission Jack
4. Remove the bolts and remove the transmission support insulator and crossmember from the back of the transmission.
