308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3156

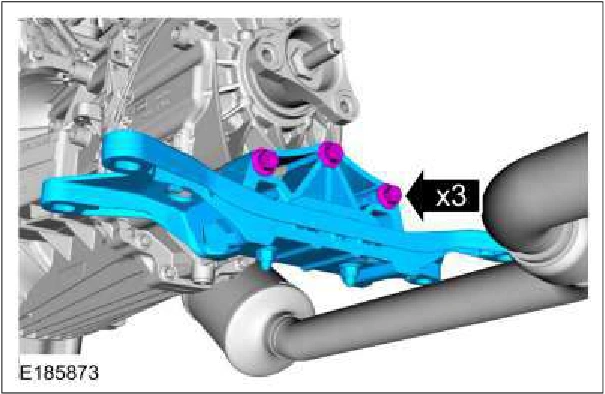

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3156Original colors & callouts · Select to enlarge

9. Install the gearshift lever. Refer to: Gearshift Lever (308-06A Manual Transmission External Controls - 6-Speed Manual Transmission - MT82, Removal and Installation).

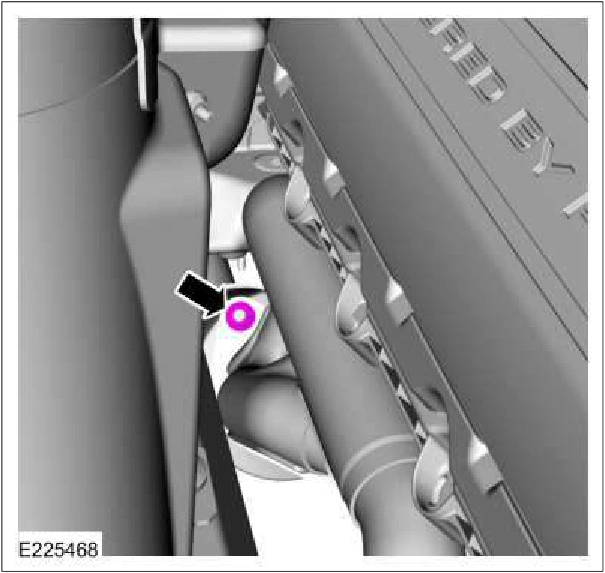

10. Install the upper RH catalytic converter nut. Torque : 30 lb.ft (40 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3156Original colors & callouts · Select to enlarge

11. Fill the transmission. Refer to: Transmission Draining and Filling (308-03A Manual Transmission - 6-Speed Manual Transmission - MT82, General Procedures).

12. Connect the battery. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

13. Fill and bleed the clutch hydraulic system. Refer to: Clutch System Bleeding (308-02 Clutch Controls, General Procedures).

Source reference 3156

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
