Transmission - 5.0L 32V Ti-VCT
Base Part Number: 7000
Materials
Name | Specification |
|---|---|
Premium Long-Life Grease XG-1-E1 | ESA-M1C75-B |
WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow these instructions may result in serious personal injury.

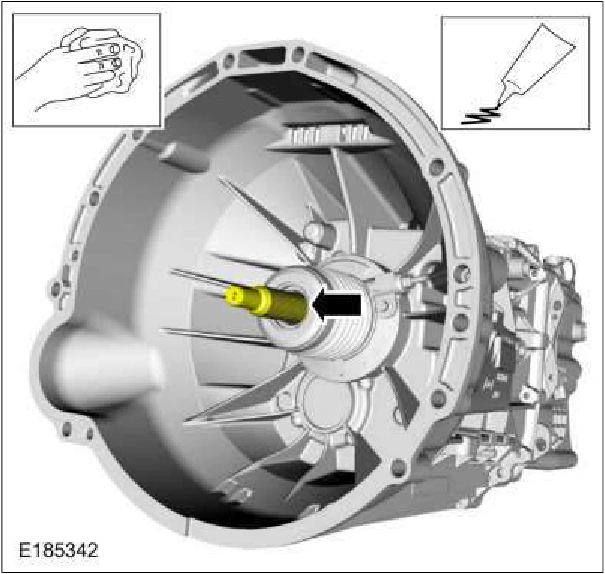

1. Clean the input shaft and apply a small amount of grease to the splined surface and the pilot bearing surface. Material : Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)
2. Install the bellhousing bolts. Torque : 35 lb.ft (48 Nm)
