308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3151Original colors & callouts · Select to enlarge

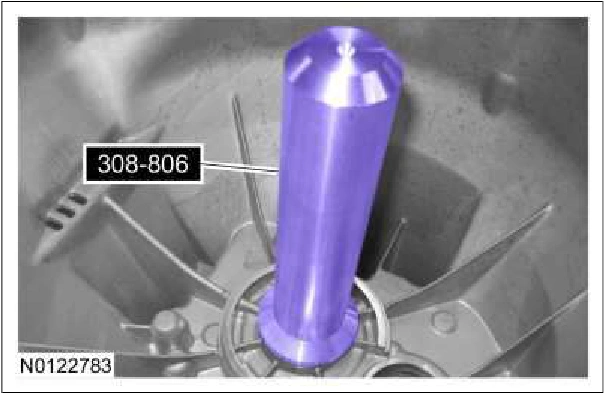

55. Using the special tool, install the new input shaft seal. Use Special Service Tool: 308-806 Installer, Front Seal.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3151Original colors & callouts · Select to enlarge

Step 56

1. Position the clutch slave cylinder and if equipped, the clutch slave cylinder spacer and connect the

tube in the retaining clip.

2. Install the 2 bolts. Torque : 97 lb.in (11 Nm)
